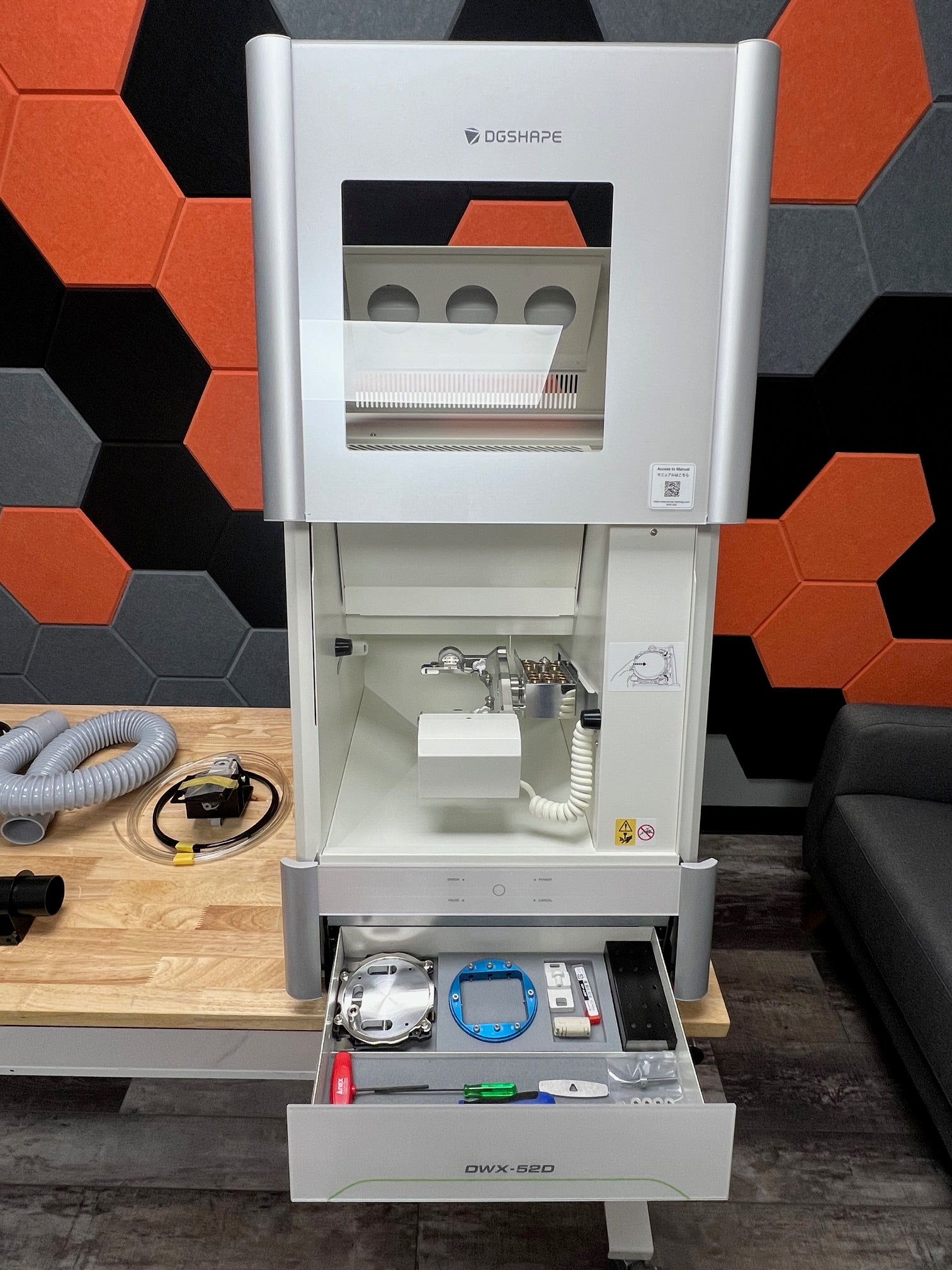

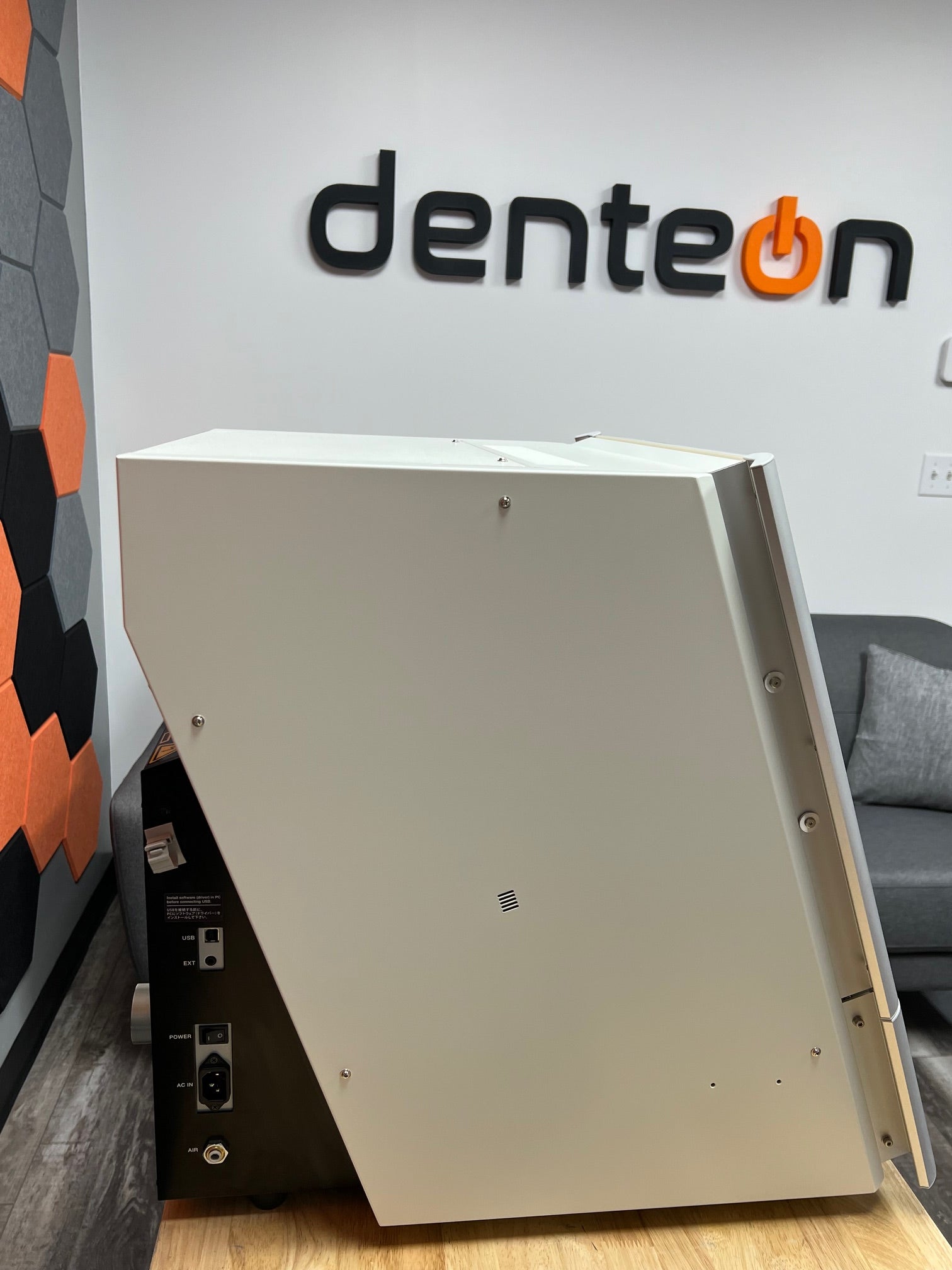

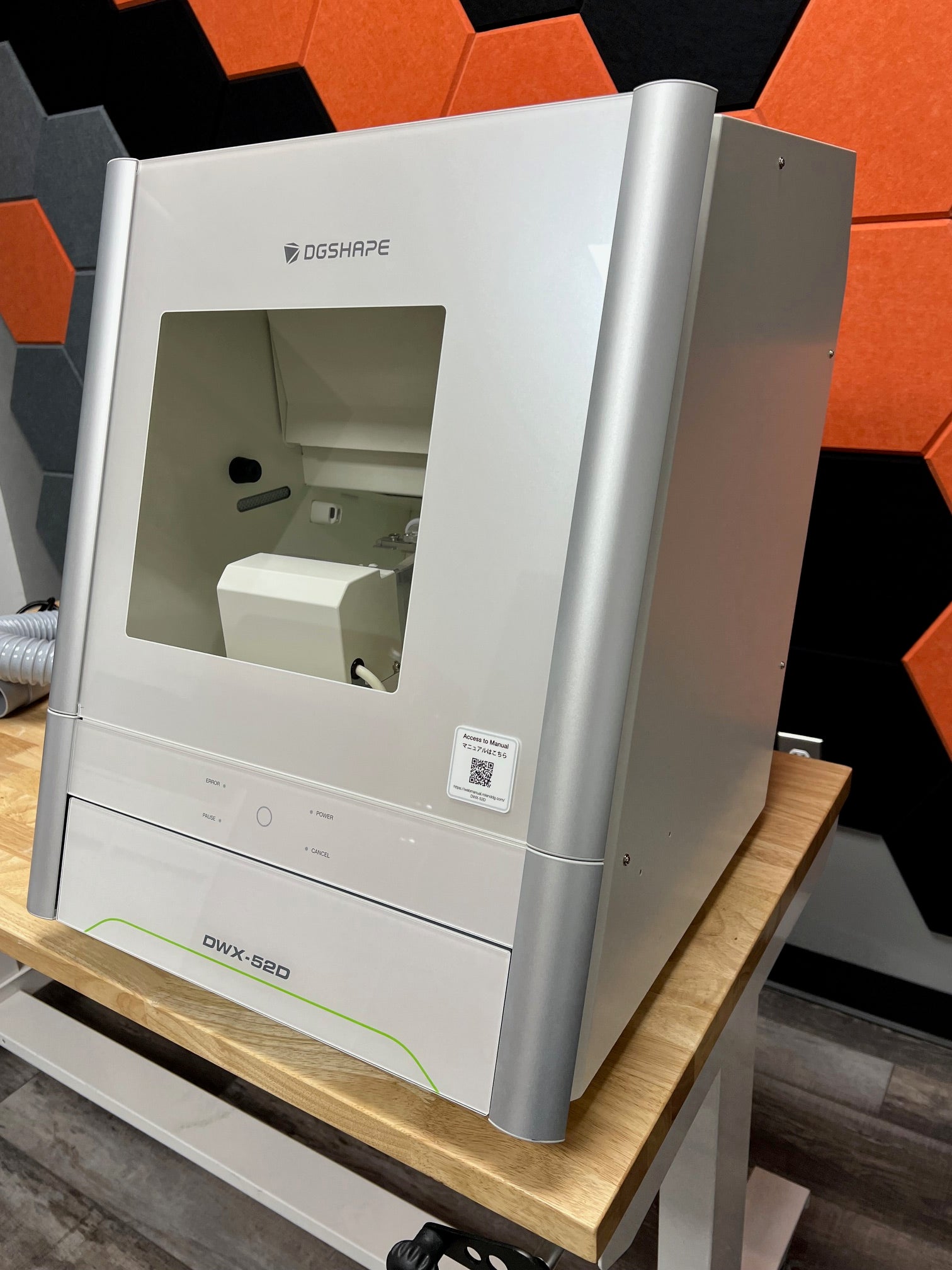

Refurbished Roland DWX-52D 0115

$16,000.00
$16,000.00 $26,000.00

Condition:

Very Good (VG)

Details:

This machine has been rebuilt by Denteon, and all functions are validated.

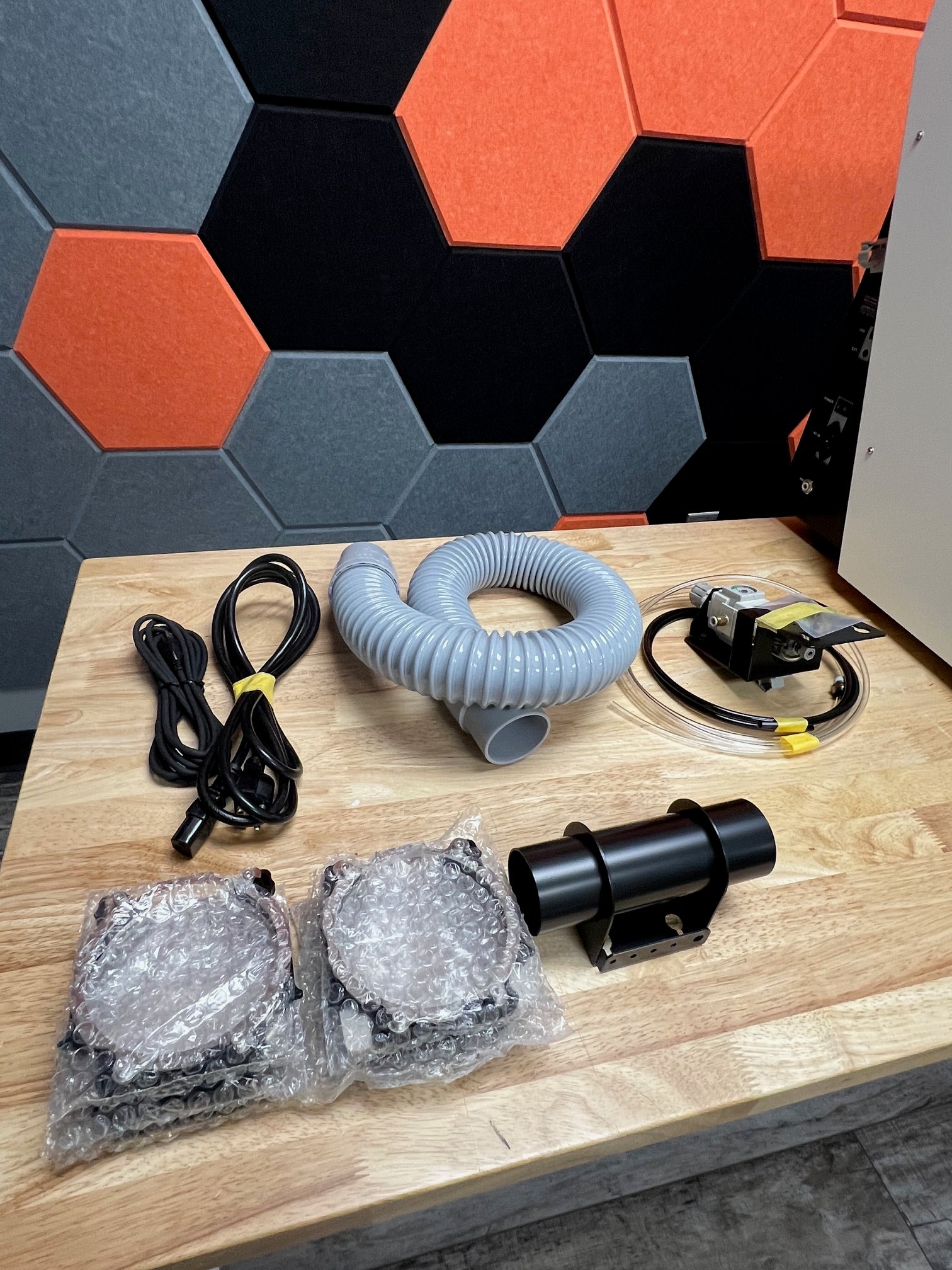

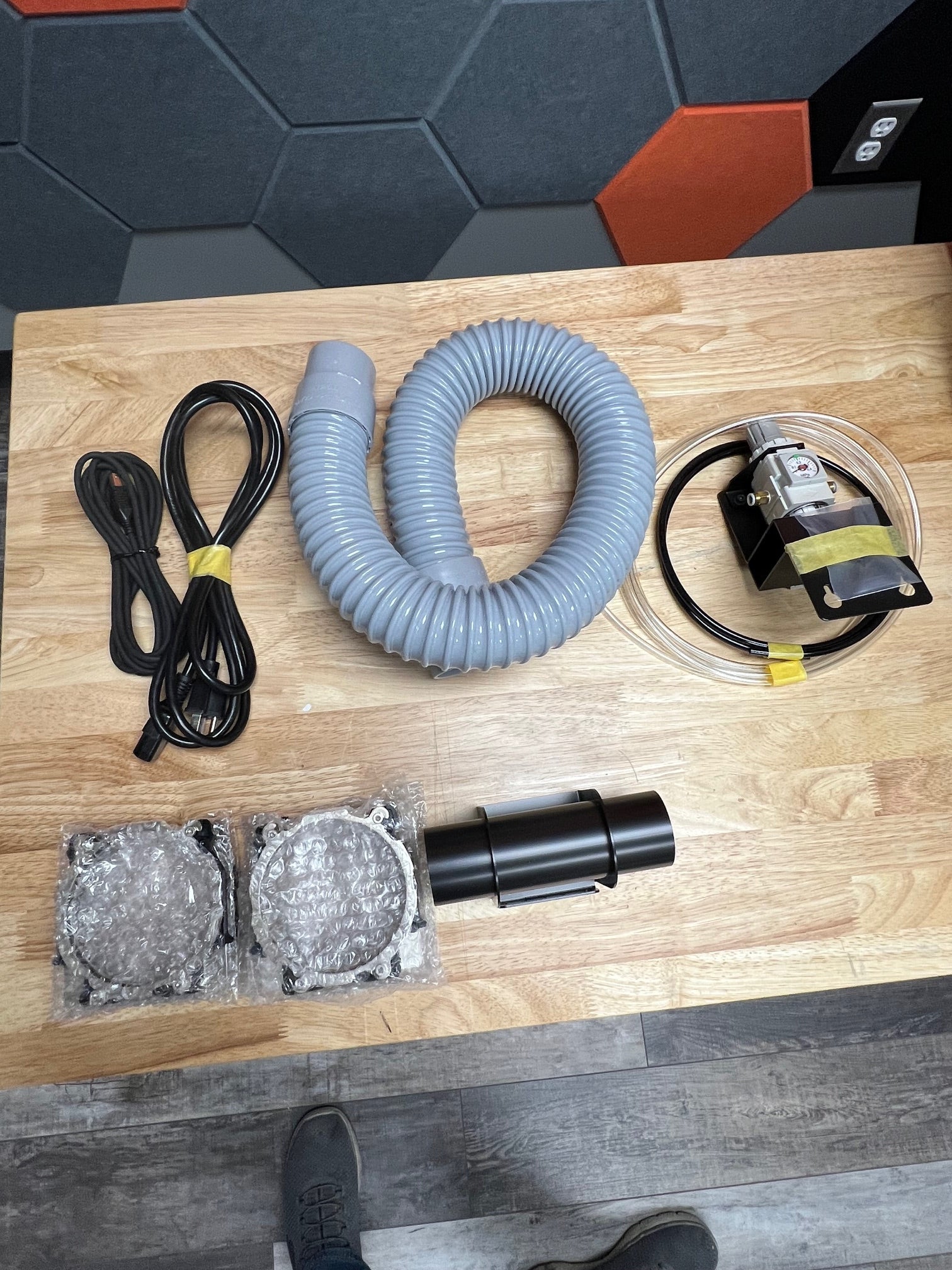

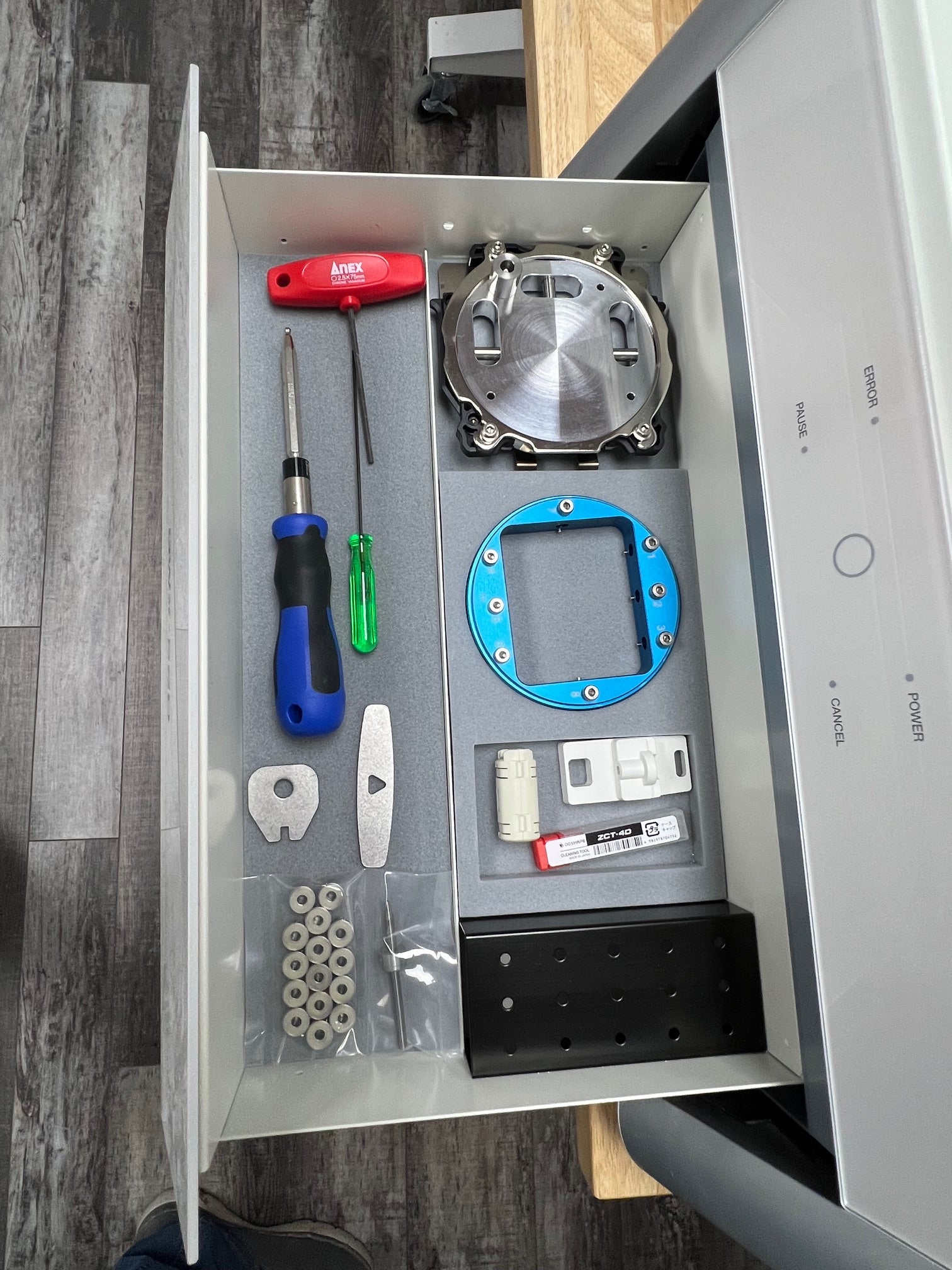

Included:

  • Power cord
  • Power plug adapter
  • USB cable
  • Manuals
  • Detection pin
  • Automatic correction jig
  • Pin-type material adapter
  • Hexagonal driver
  • Spanner
  • Milling bur holders
  • Milling bur positioner
  • Dust collection hoses
  • Dust collection hose adapter
  • Regulator
  • Cleaning tool
  • Option adapter labels
  • Material adapters
Specification Chart
Category Details
Cuttable Material Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Glass fiber reinforced resin, Chrome Cobalt sintered metal
Loadable Workpiece Shape
  • External Diameter: 98.5 mm
  • Max Height: 60 mm
  • Step: 10 mm
Pin Type Diameter 6 mm
Loadable Workpiece Weight Up to 850 g
Number of Adapters Housed 6
Operating Speed XYZ axis: 6 to 1,800 mm/min. (0.24 to 70.9 in./min.)

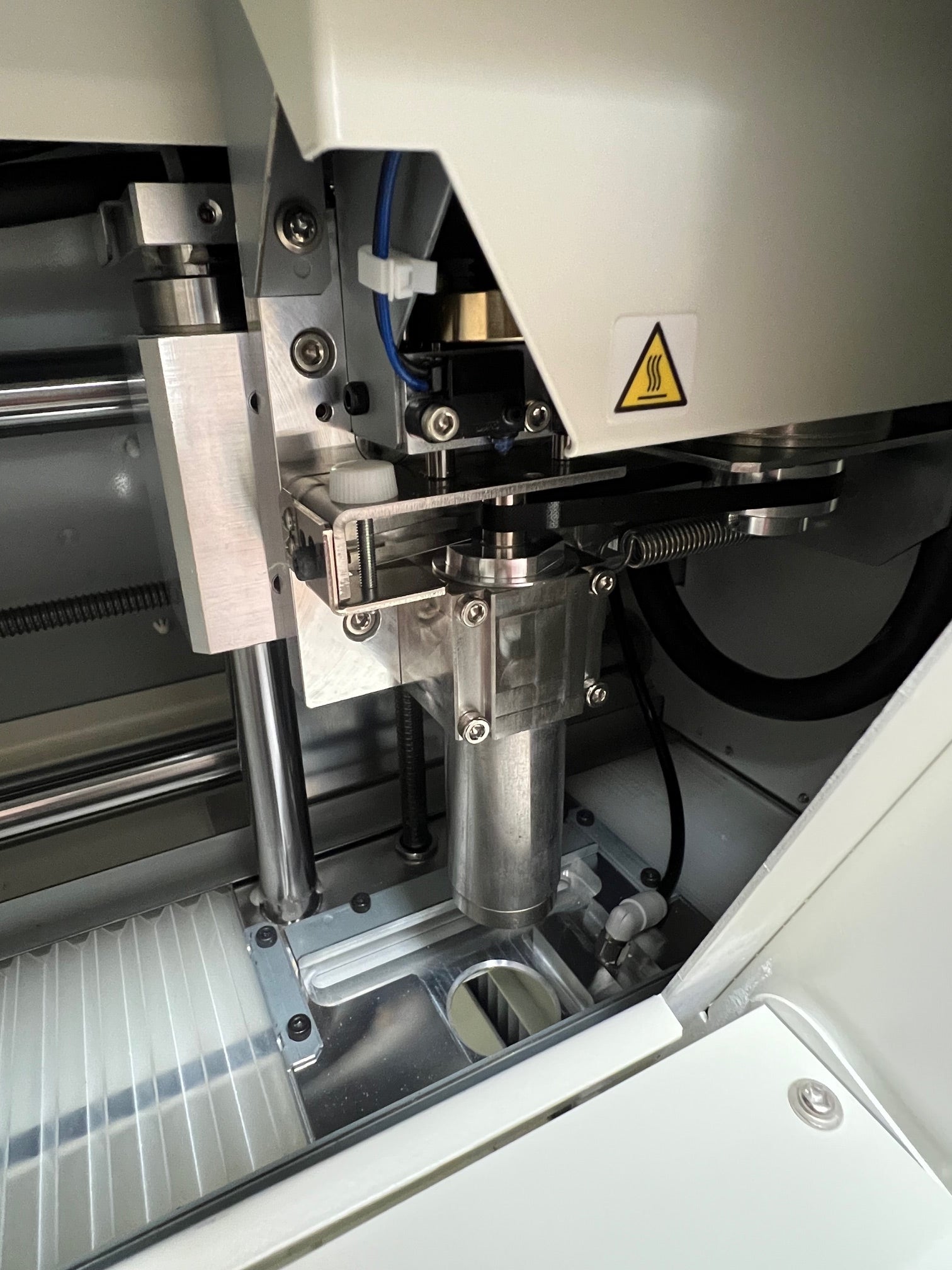

Spindle Motor Brushless DC Motor
Spindle Speed 6,000 to 30,000 rpm
Rotary Axis Travel Angle
  • A Axis: ±360°
  • B Axis: ±30°

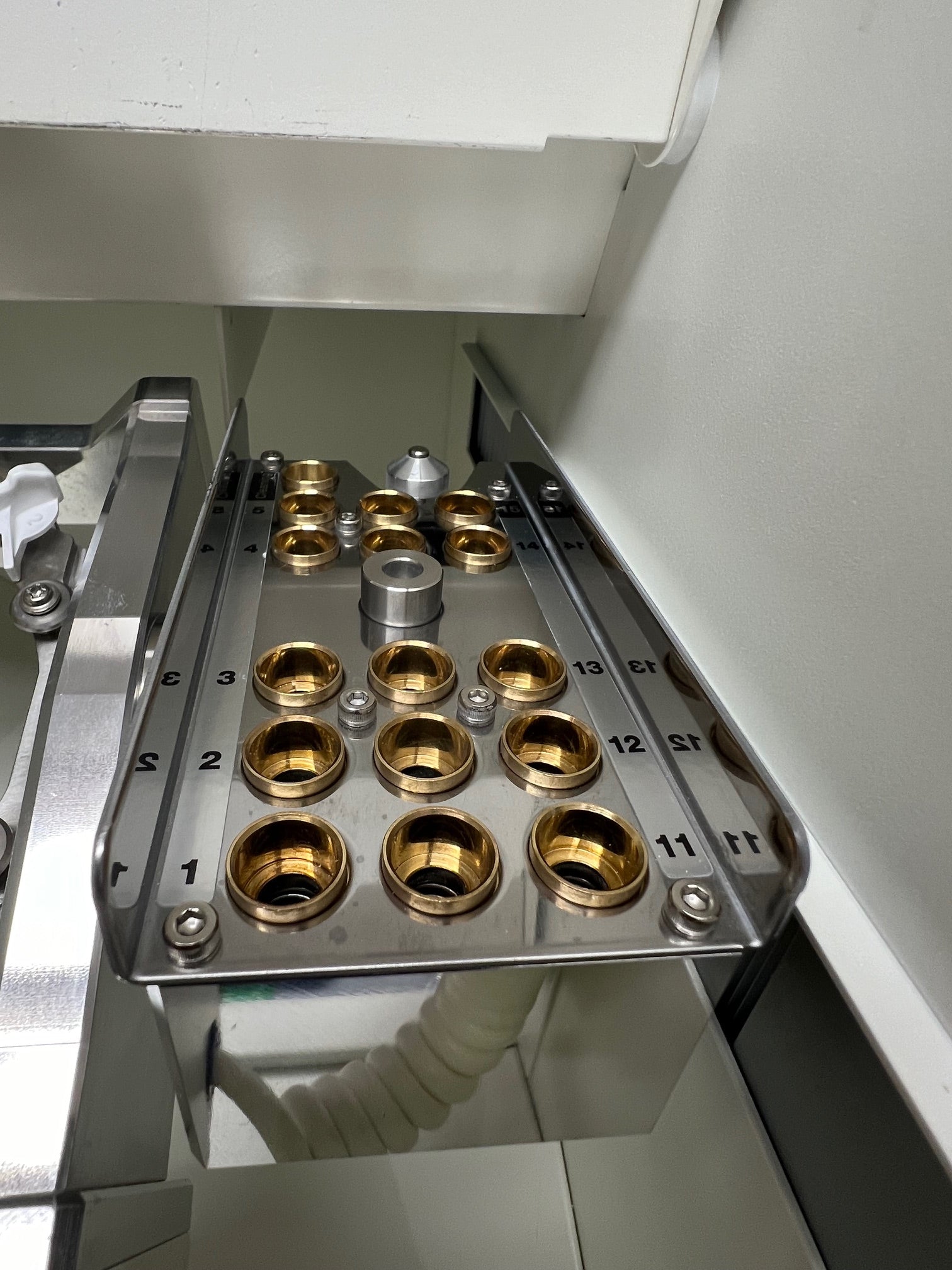

Number of Burs Housed 15
Attachable Bur
  • Shank diameter: 4 mm
  • Length: 40-55 mm
Compatible Compressed Air 0.05/0.2 MPa (Automatic switch)
Interface USB
Control Command Set RML-1, NC code
Power Requirements AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1)
Power Consumption Approximately 200 W
Operating Noise
  • During operation: 70 dB(A) or less (when not cutting)
  • During standby: 45 dB(A) or less
External Dimensions
  • Width: 19.5 in (495 mm)
  • Depth: 26.0 in (660 mm)
  • Height: 23.6 in (600 mm)
Weight 147.7 lbs. (67 kg)
Installation Environment
  • Altitude: Up to 6,562 ft. (2,000m)
  • Temperature: 41 to 104 °F (5 to 40°C)
  • Humidity: 35 to 80% (no condensation)
  • Ambient pollution degree: 2 (as specified by IEC 60664-1)
  • Short-term temporary overvoltage: 1,440 V
  • Long-term temporary overvoltage: 490 V
Included Items Power cord, power plug adapter, USB cable, manuals, Roland DG software package CD, detection pin, automatic correction jig, pin-type material adapter, hexagonal driver, spanner, milling bur holders, milling bur positioner, dust collection hoses, dust collection hose adapter, regulator, cleaning tool, option adapter labels, material adapters, material adapter rack
Operating System Windows® 7/8/8.1/10 (32 or 64 bit)
USB Cable Use the included USB cable
