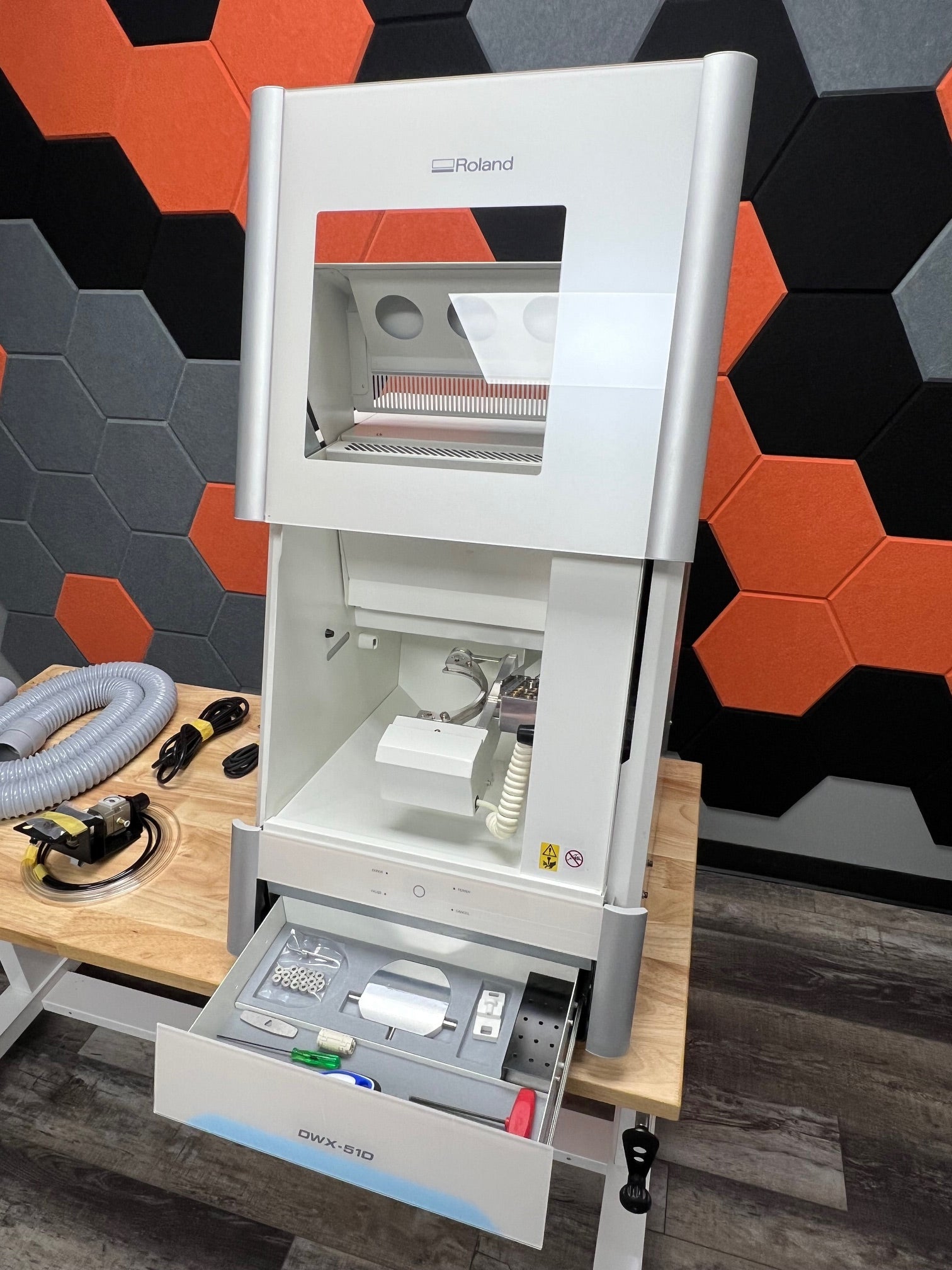

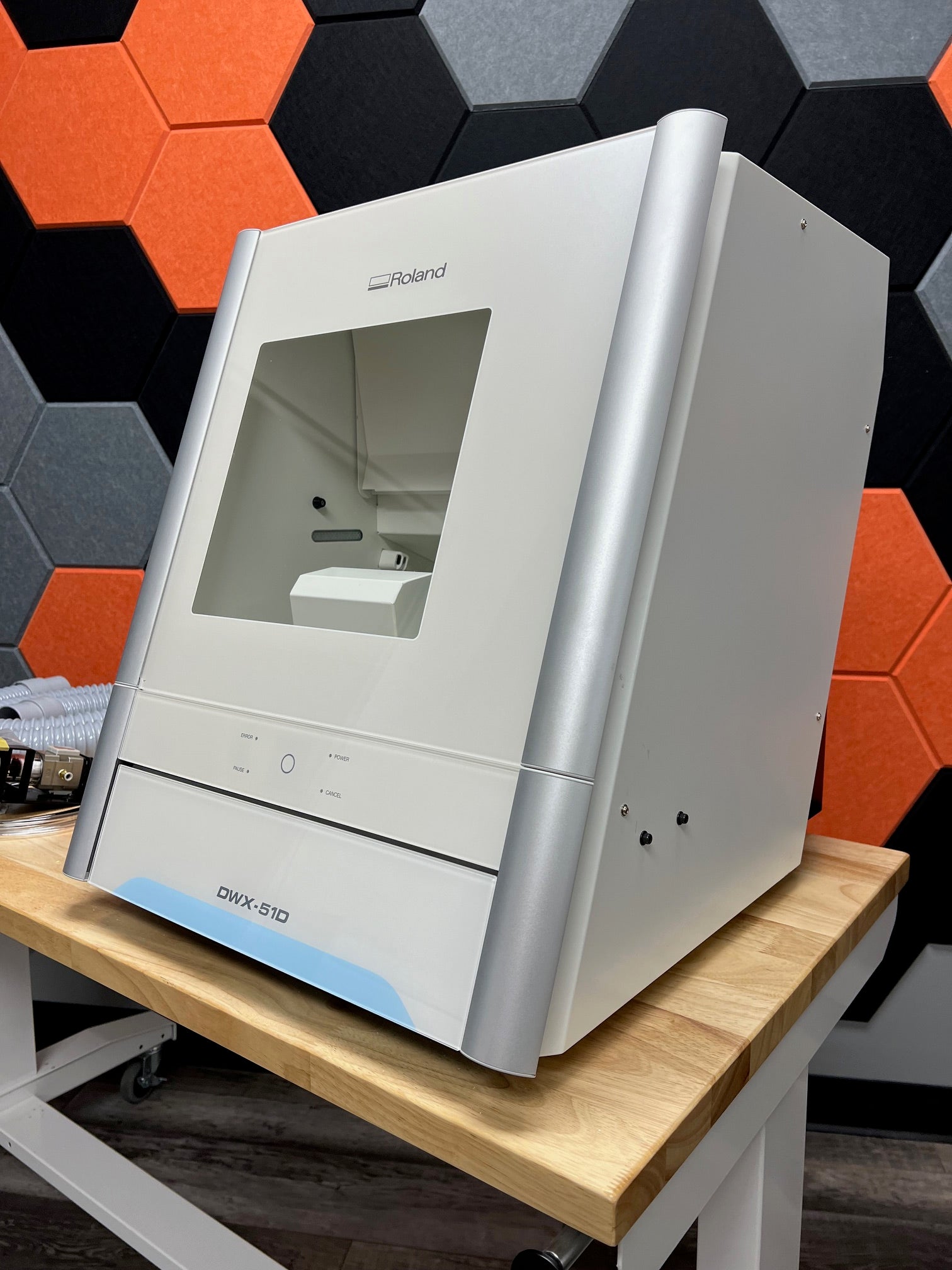

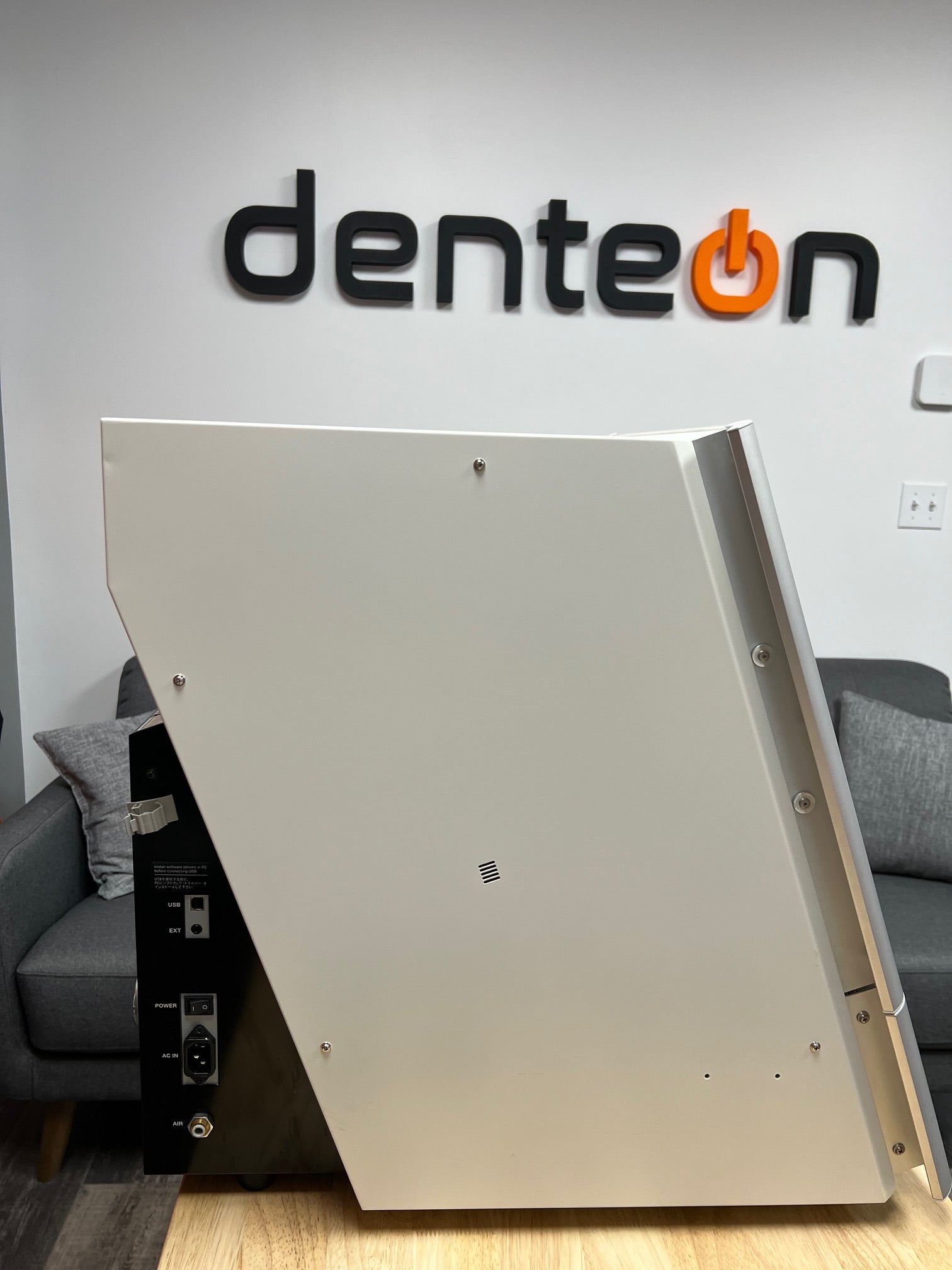

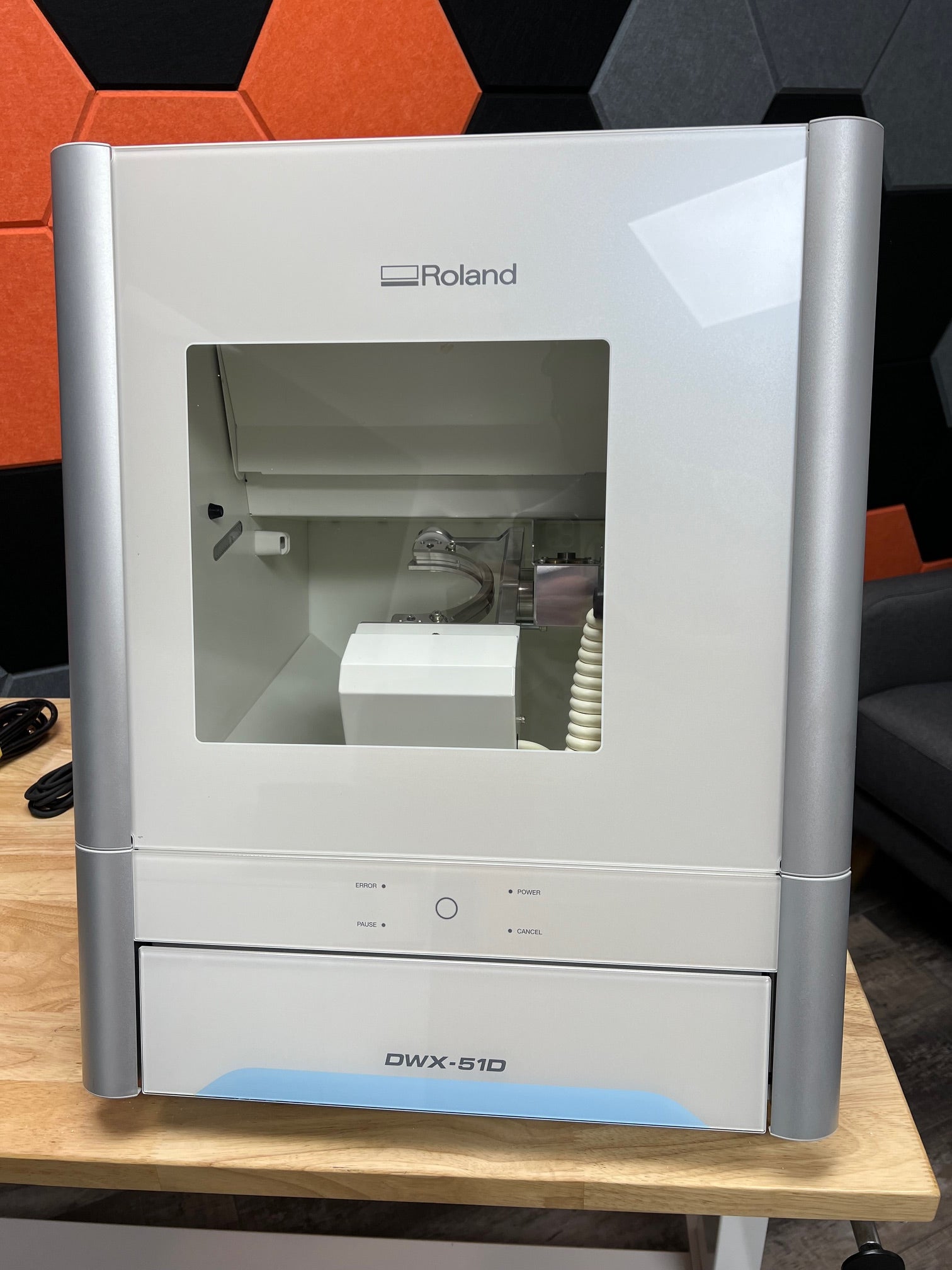

Refurbished Roland DWX-51D 0116
Regular price
$8,600.00
Sale price
$8,600.00
Regular price
$12,999.00
The DWX-51D offers the best performance and value for dry milling zirconia and other popular materials. For those wanting to combine dry and wet milling, running the the DWX-51D dry mill alongside the DWX-4W wet mill offers the most flexible and productive solution. Using separate dry and wet DWX devices gives you the confidence to take on the maximum amount of glass ceramic and zirconia restorations without the need for time-consuming, back-and-forth set-up and cleaning of a single machine.
The product usually ships within 1 to 2 days
Condition:
Very Good (VG)
Details:
This machine has been rebuilt by Denteon, and all functions are validated.
Included:
- Power cord
- Power plug adapter
- USB cable
- Manuals
- Detection pin
- Automatic correction jig
- Pin-type material adapter

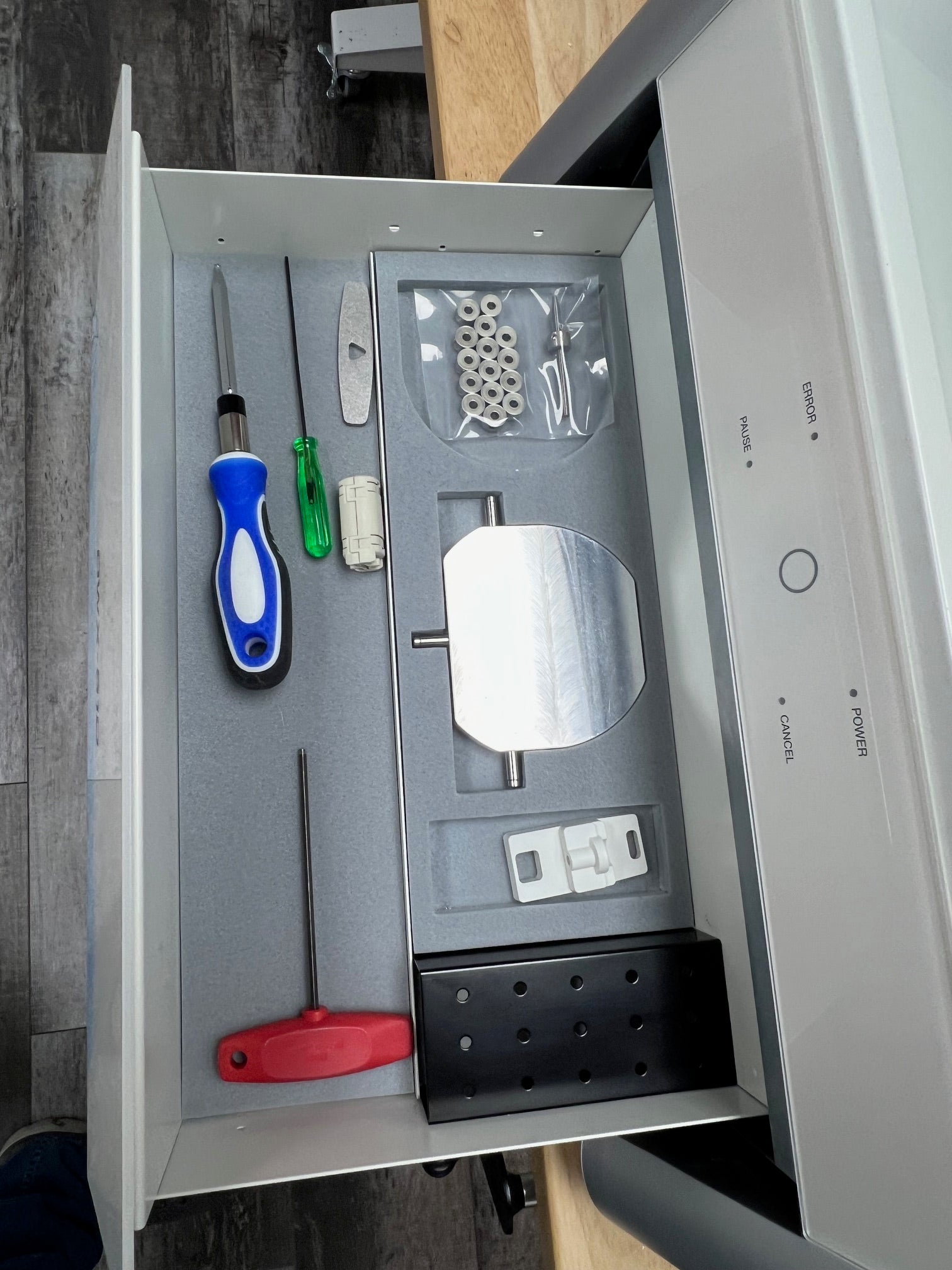

- Hexagonal driver
- Spanner
- Milling bur holders
- Milling bur positioner

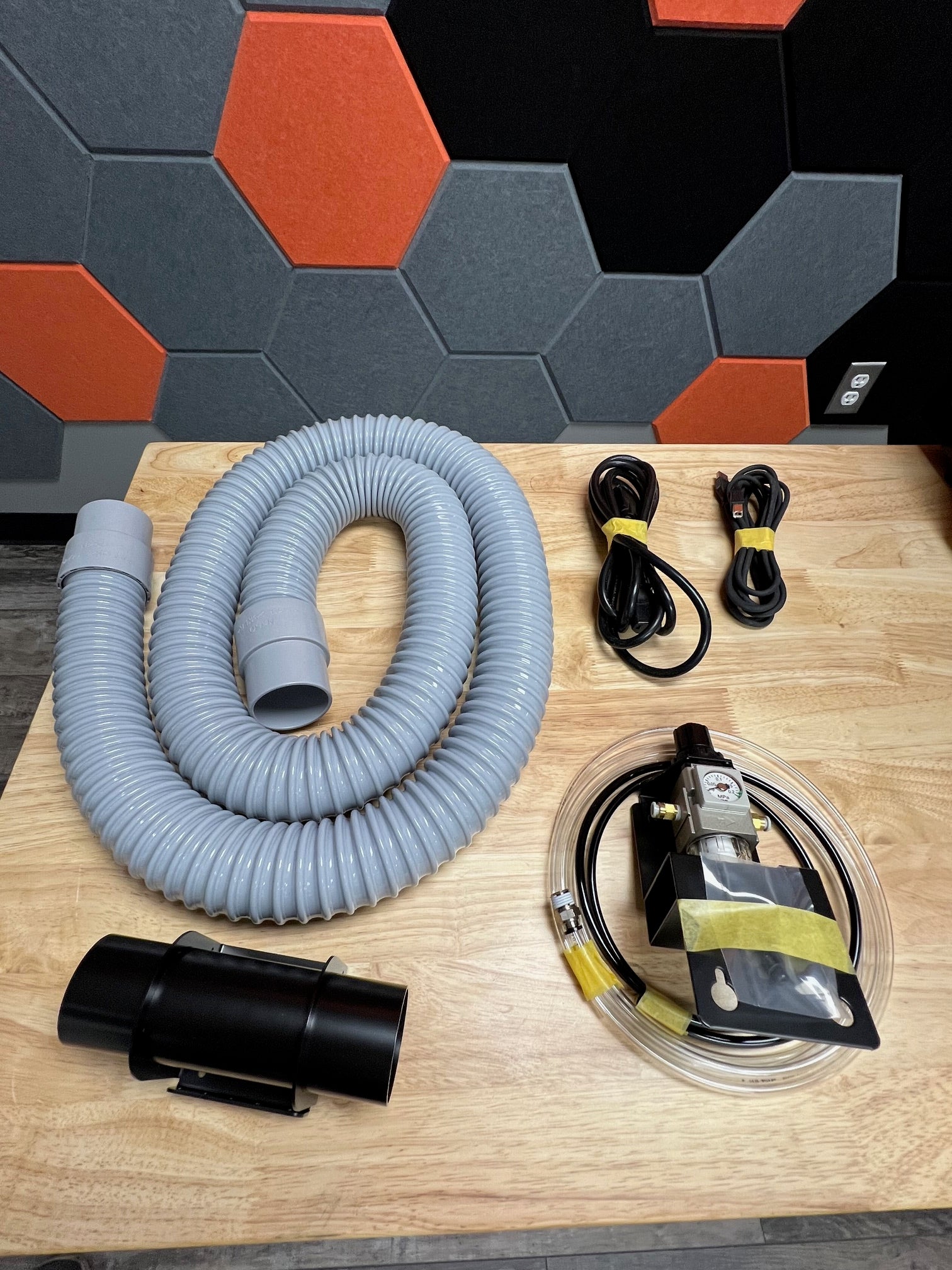

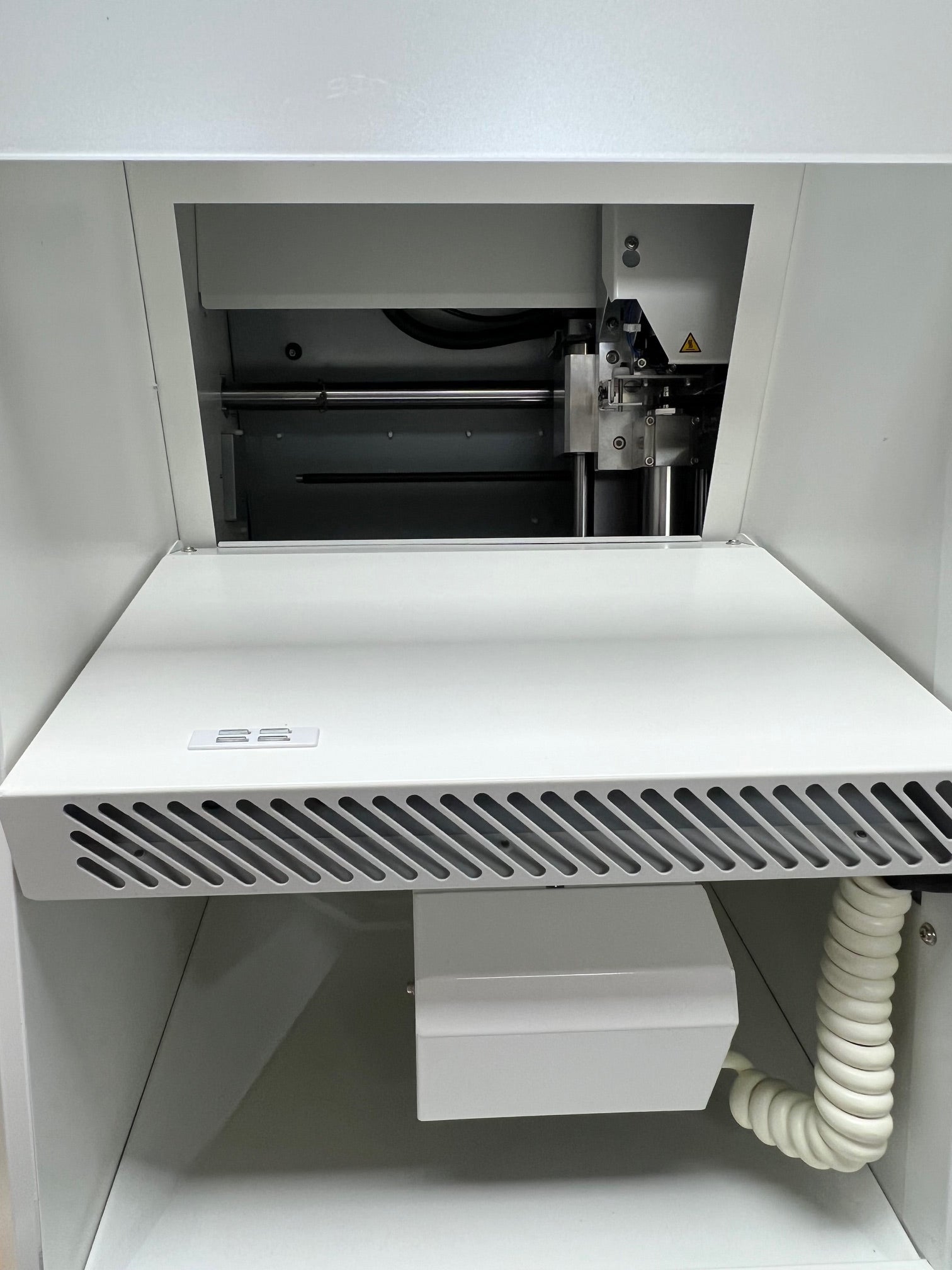

- Dust collection hoses
- Dust collection hose adapter
- Regulator
- Cleaning tool
- Option adapter labels

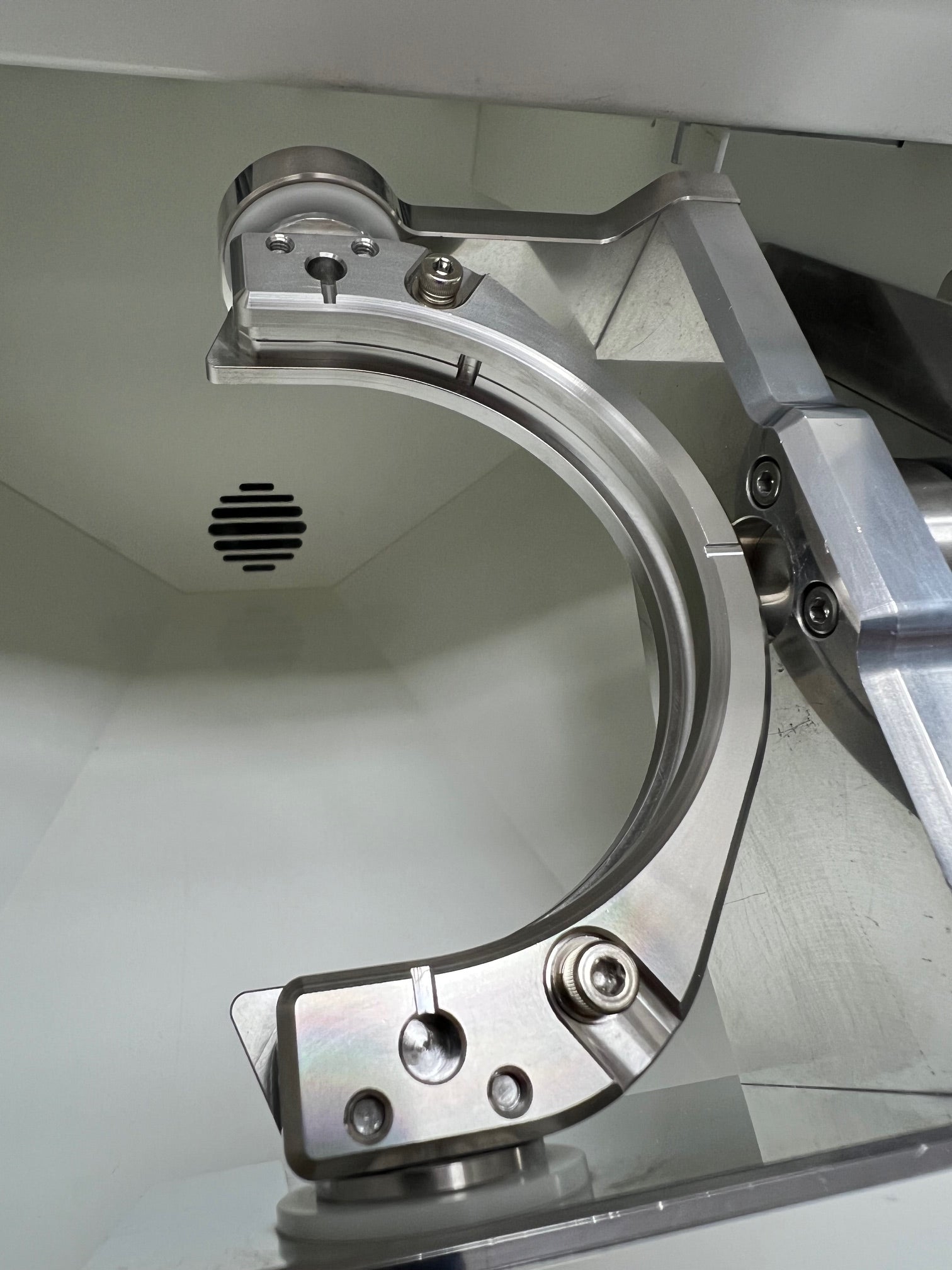

- Material adapters
| Feature | Details |
|---|---|
| Cuttable Material | Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum |
| Loadable Workpiece Shape | Disc type (with step) Step section: 98.5 mm (diameter), height 10mm Body section: 95 mm (diameter), height max. 60mm |
| Pin Type | Pin diameter: 6 mm |
| Operating Speed | XYZ axis: 6 to 1800 mm/min. (0.24 to 70.9 in./min.) |

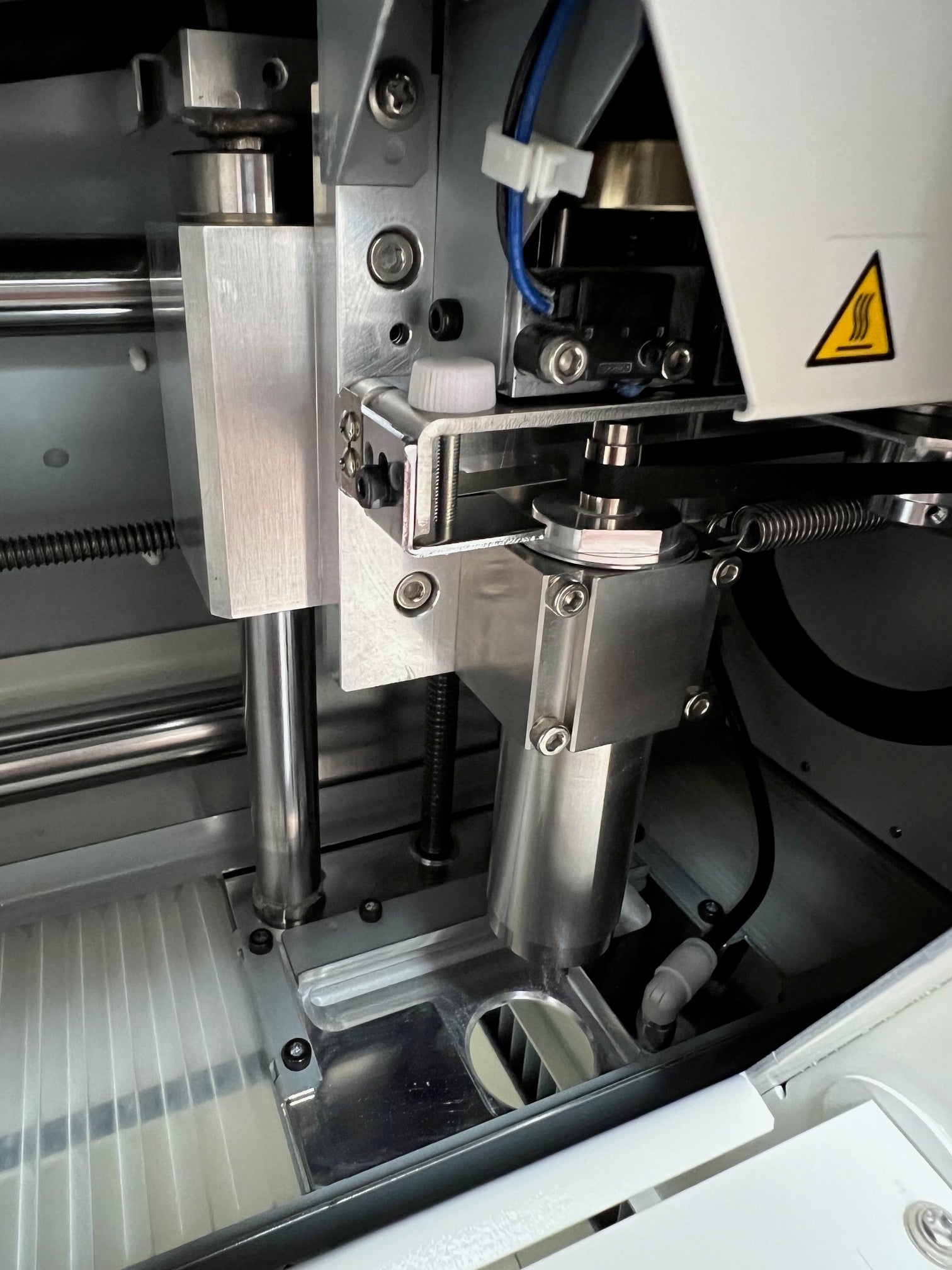

| Spindle Motor | Brushless DC motor |
| Spindle Speed | 6,000 to 30,000 rpm |

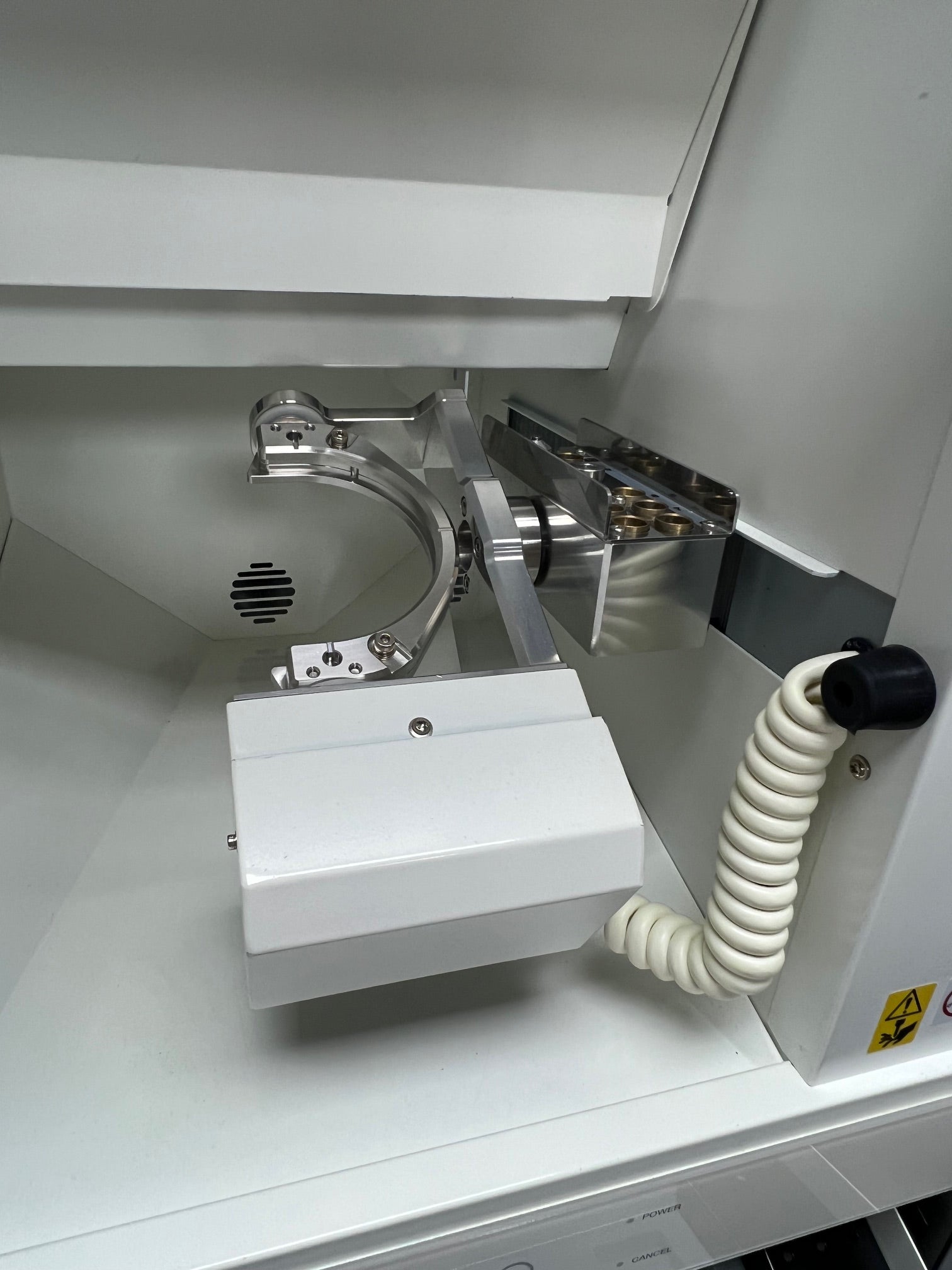

| Rotary Axis Travel Angle | A axis: ±360° B axis: ±30° |

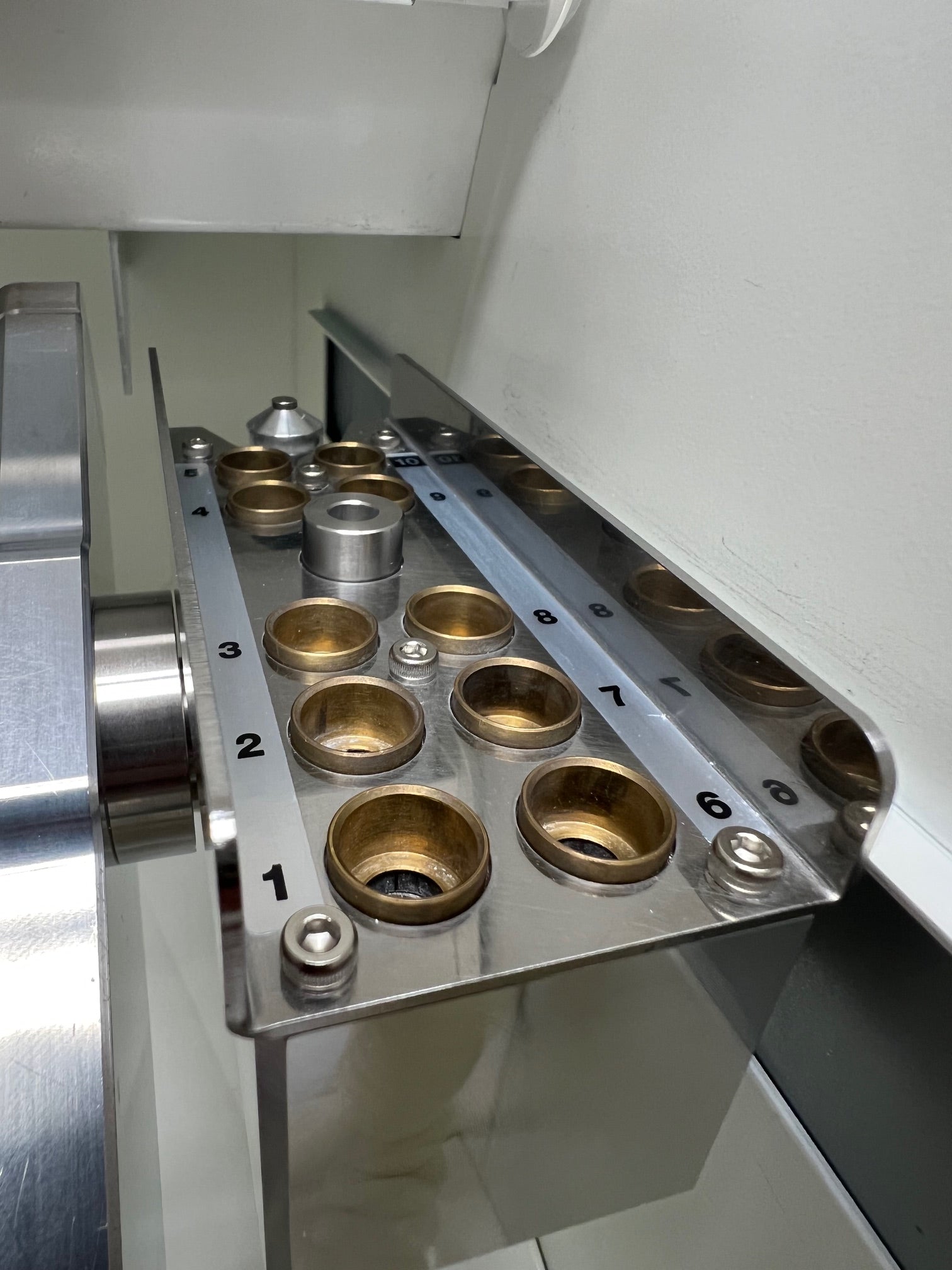

| Number of Burs Housed | 10 |
| Attachable Bur | Shank diameter: 4 mm Length: 40 to 55 mm |
| Compatible Compressed Air | 0.02 to 0.2 MPa |
| Interface | USB |
| Control Command Set | RML-1, NC code |
| Power Requirements | AC 100 to 240 V ± 10%, 50/60 Hz , 2.0 A (overvoltage category II, IEC 60664-1) |
| Power Consumption | Approx. 200 W |
| Operating Noise | During operation: ≤ 70 dB (A) (when not cutting) During standby: ≤ 45 dB (A) |
| External Dimensions | Width x Depth x Height: 495 × 660 × 600 mm (19.5 × 26.0 × 23.6 in.) |
| Weight | 67 kg (147.7 lbs.) |
| Installation Environment | Indoor use, Altitude: Up to 2000 m (6,562 ft.) Temperature: 5 to 40 °C (41 to 104 °F) Humidity: 35 to 80% (no condensation) |
| Ambient Pollution Degree | 2 (as specified by IEC 60664-1) |
| Short-term Temporary Overvoltage | 1440 V |
| Long-term Temporary Overvoltage | 490 V |
| Included Items | Power cord, USB cable, Regulator, Air hose, Pin-type material adapter, Automatic correction jig, Detection pin, Torque screwdriver, Milling bur holders, Mounting screws, Hexagonal screwdriver, T-shaped hexagonal screwdriver, Dust collection hoses, Dust collection hose adapter, spanner, Roland Software Package CD, Torque screwdriver, Ferrite core, Manuals |
| System Requirements for USB Connection | Operating system: Windows Vista®, Windows® 7/8/8.1/10 (32 or 64 bit) USB cable: Use the included USB cable |
