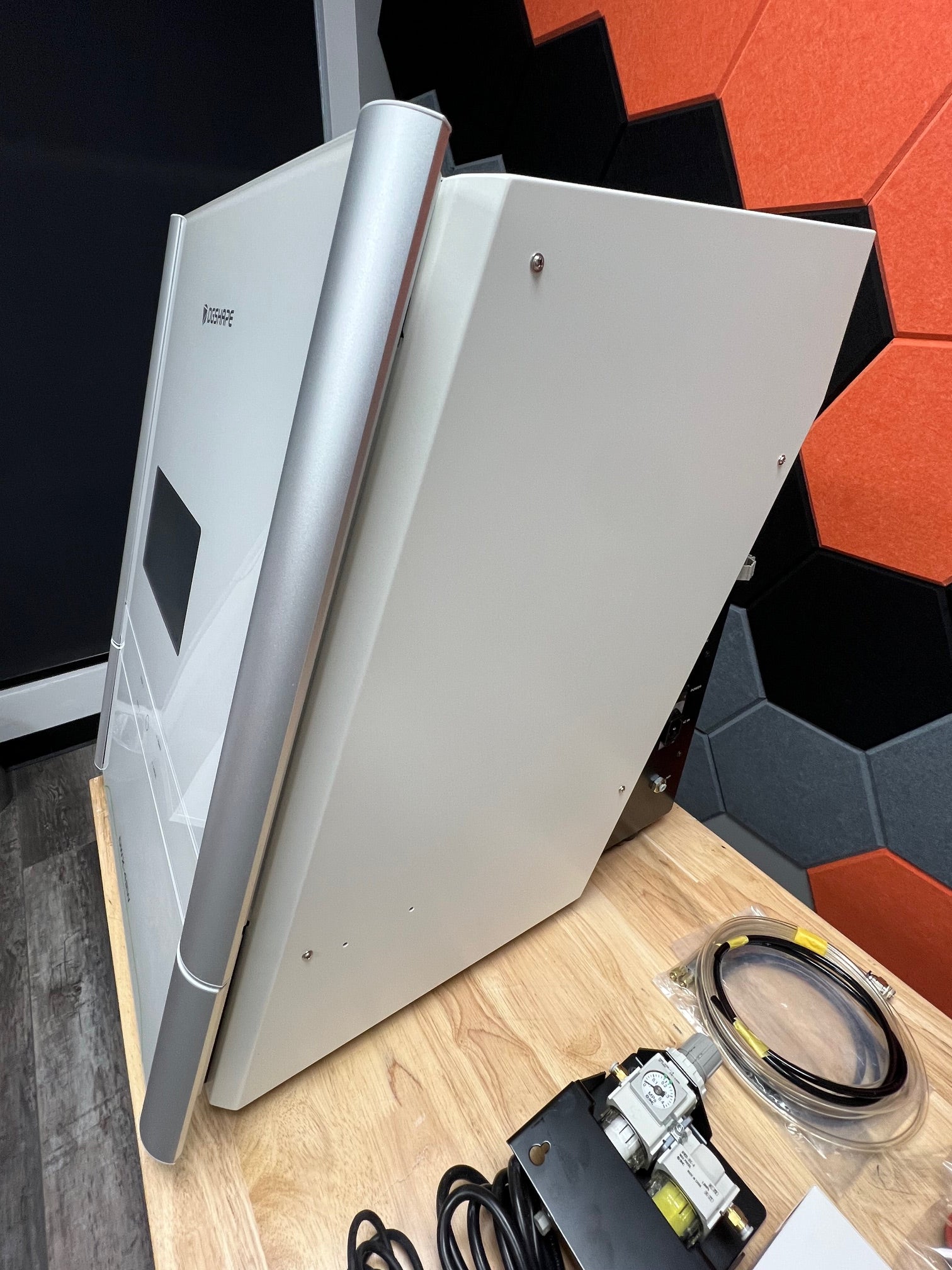

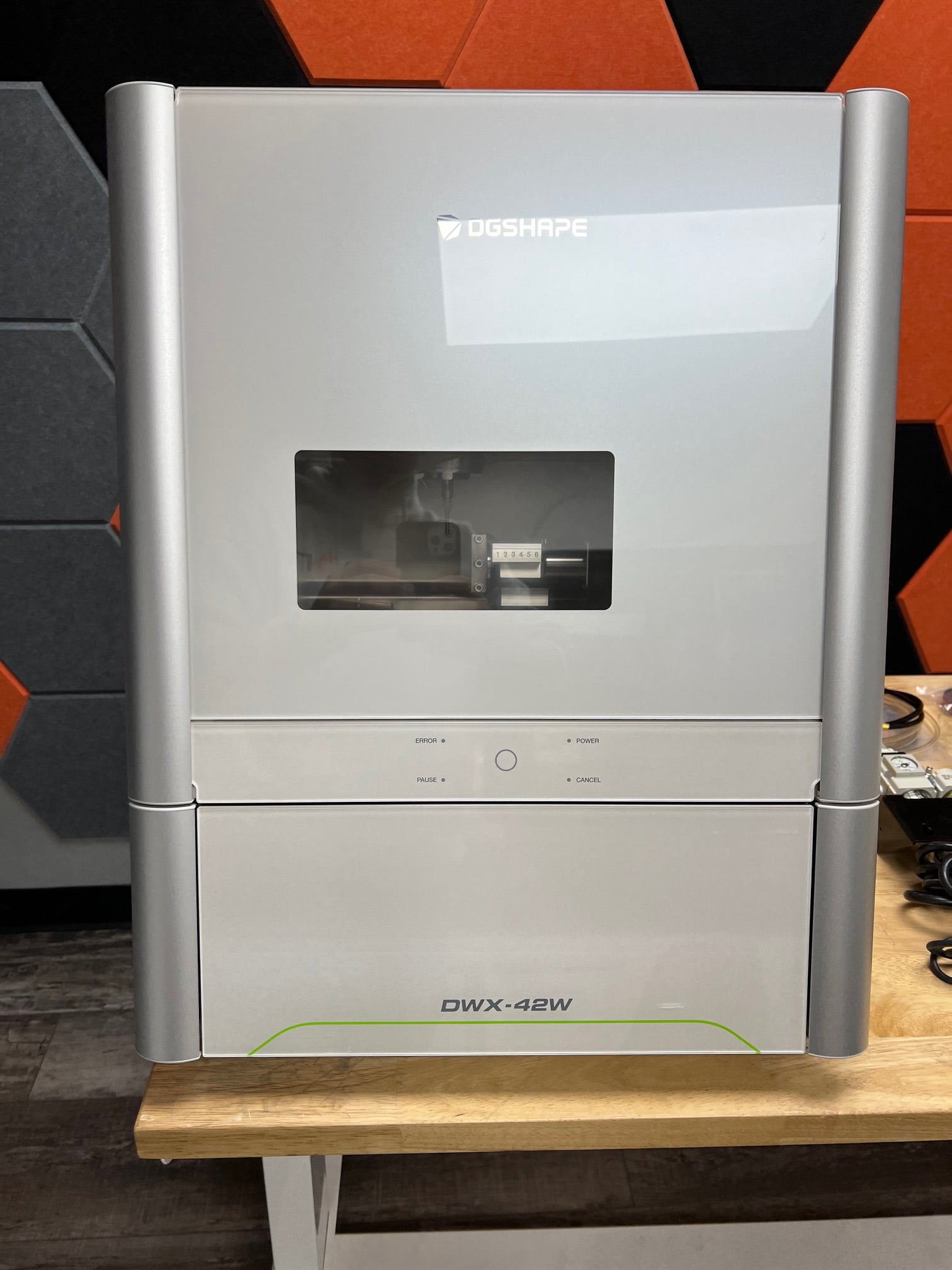

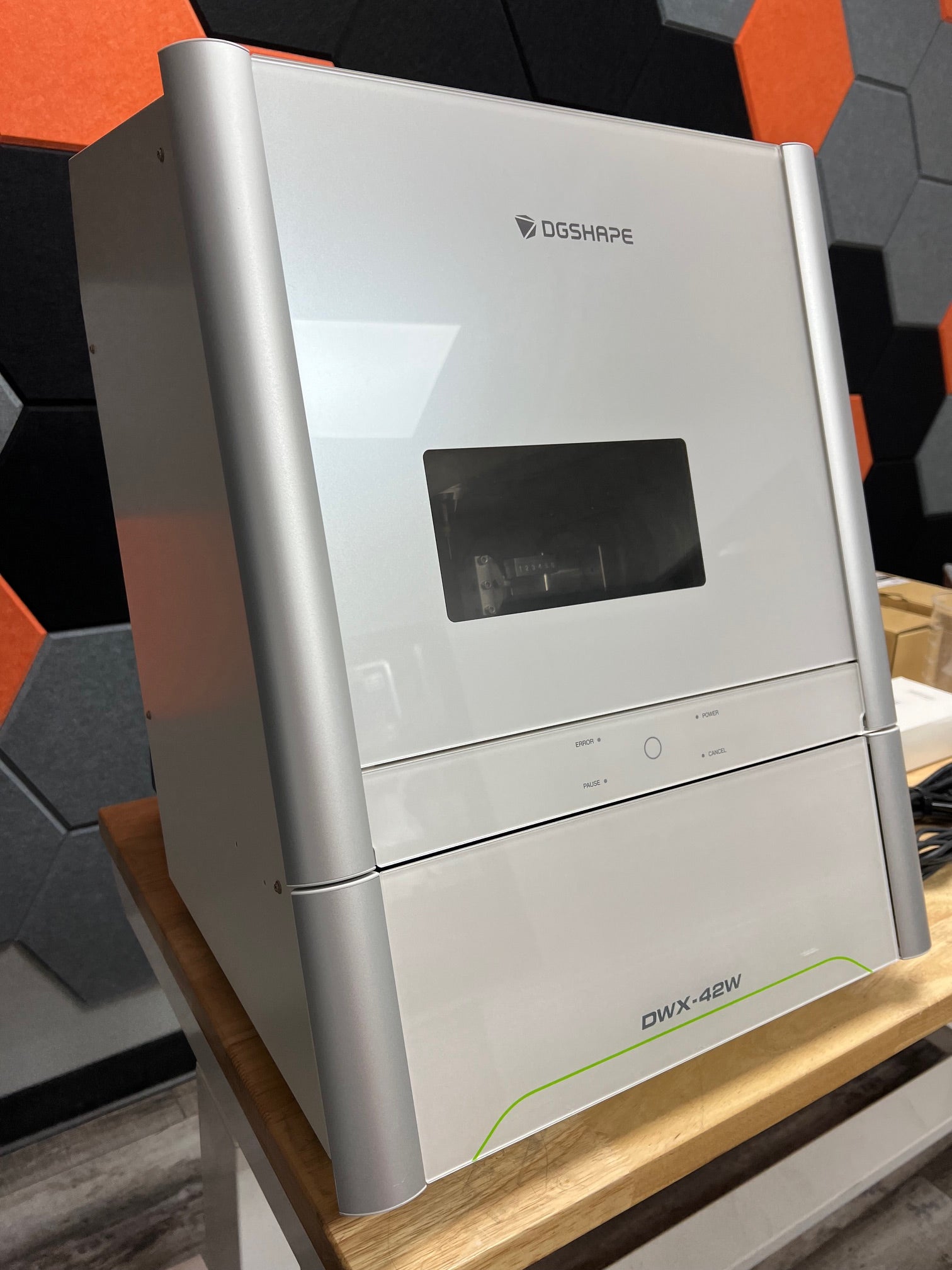

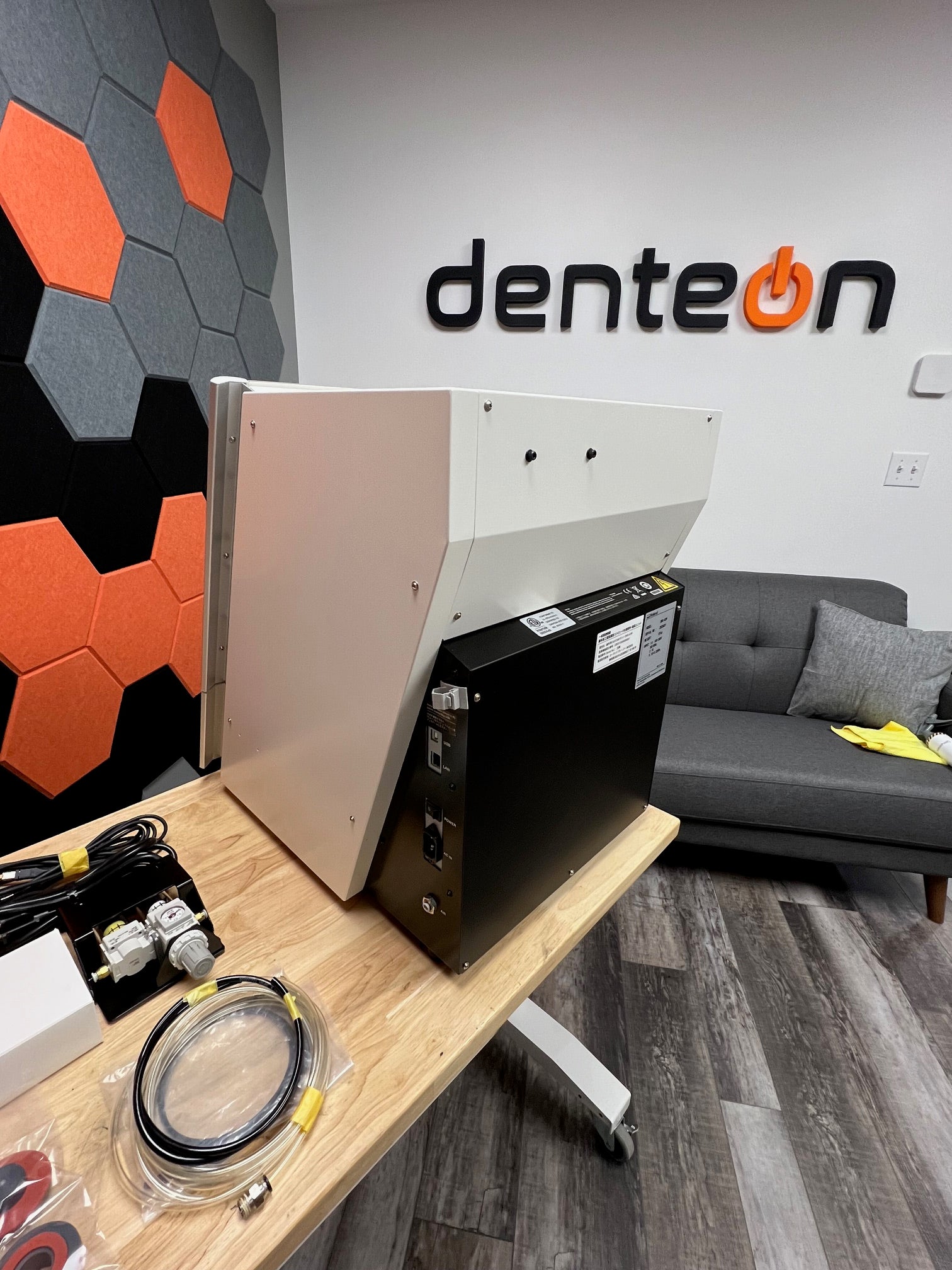

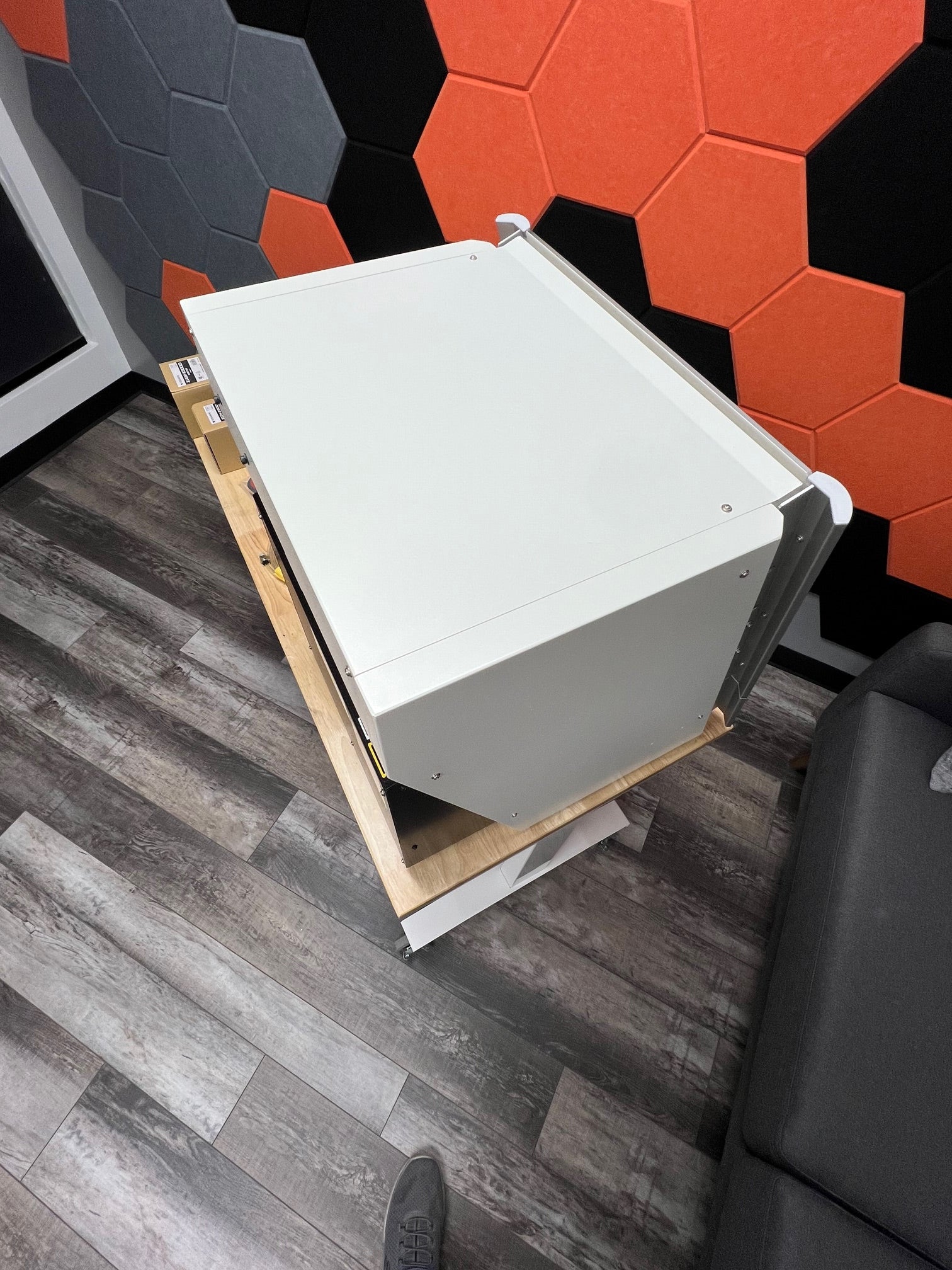

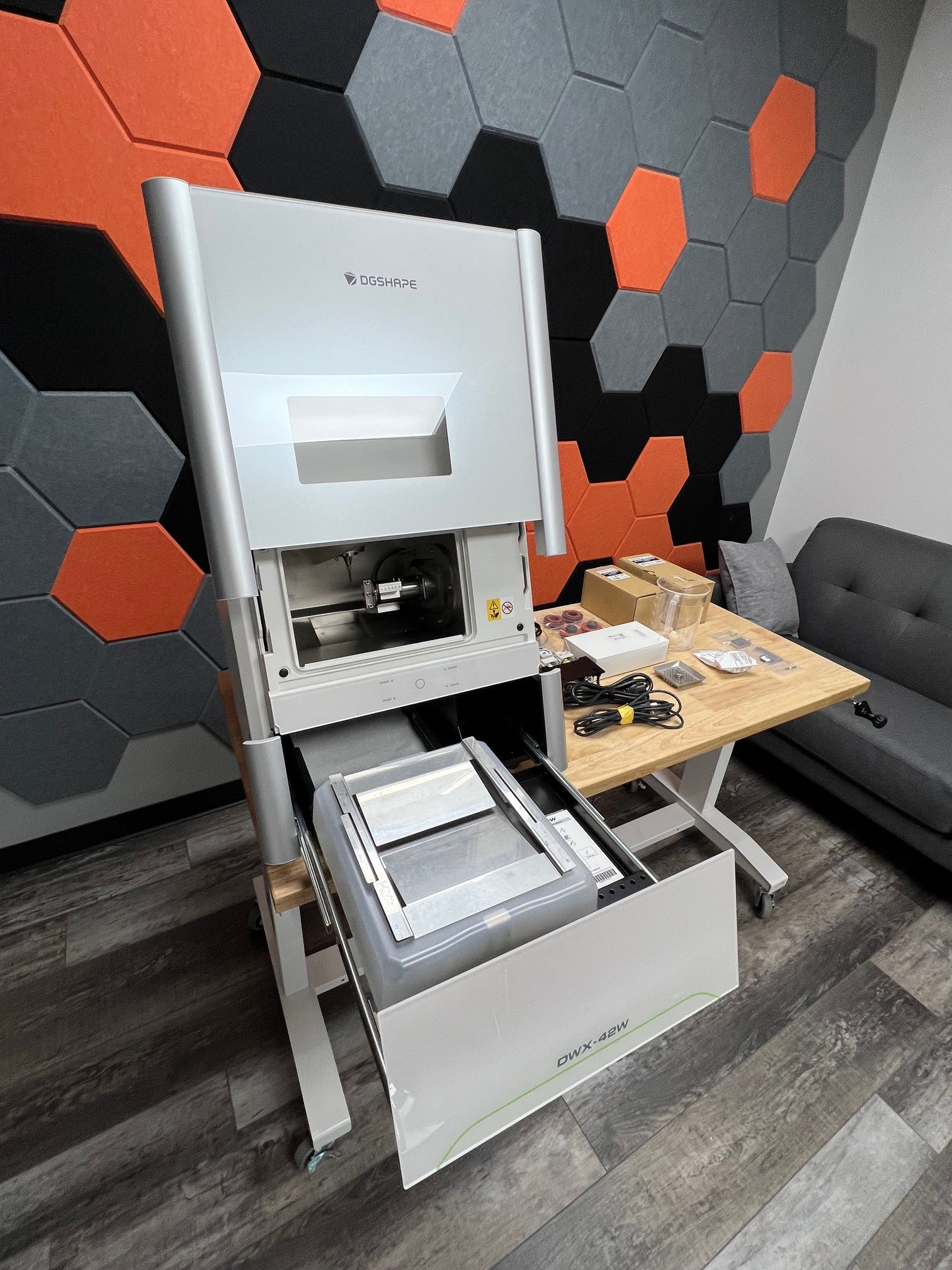

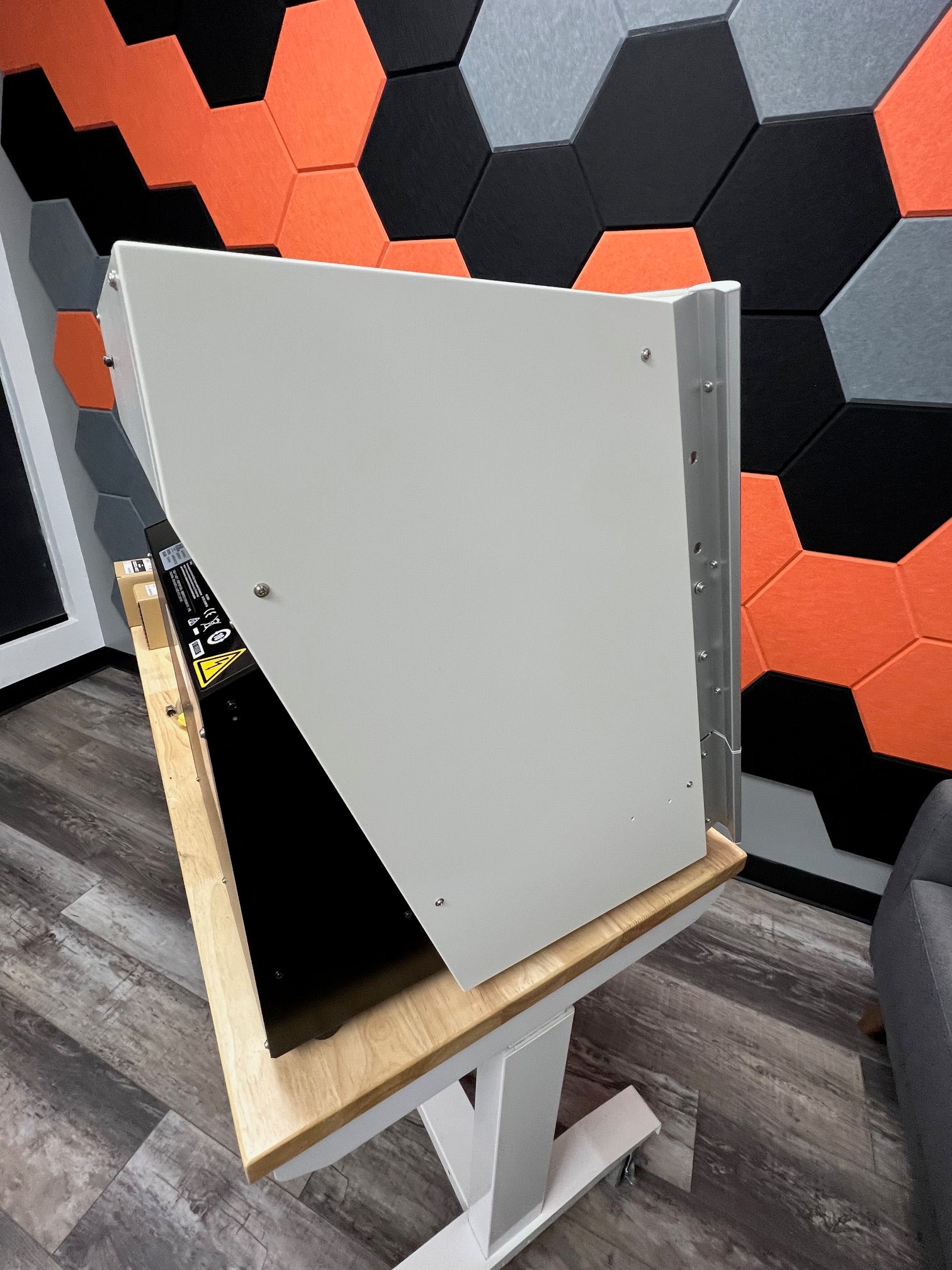

Refurbished Roland DWX 42W 0140

$26,000.00
$26,000.00 $29,995.00

Condition:

Very Good (VG)

Details:

This machine has been rebuilt by Denteon, and all functions are validated.

Included:

  • Power cord,
  • USB cable,
  • Detection pin,
  • Dummy pin,
  • Rotary axis correction jig,
  • ATC magazine correction jig and screw,
  • Hexagonal screwdriver
  • Hexagonal wrench
  • Measuring cup
  • Mounting screws (4)
  • Milling bur removal jig

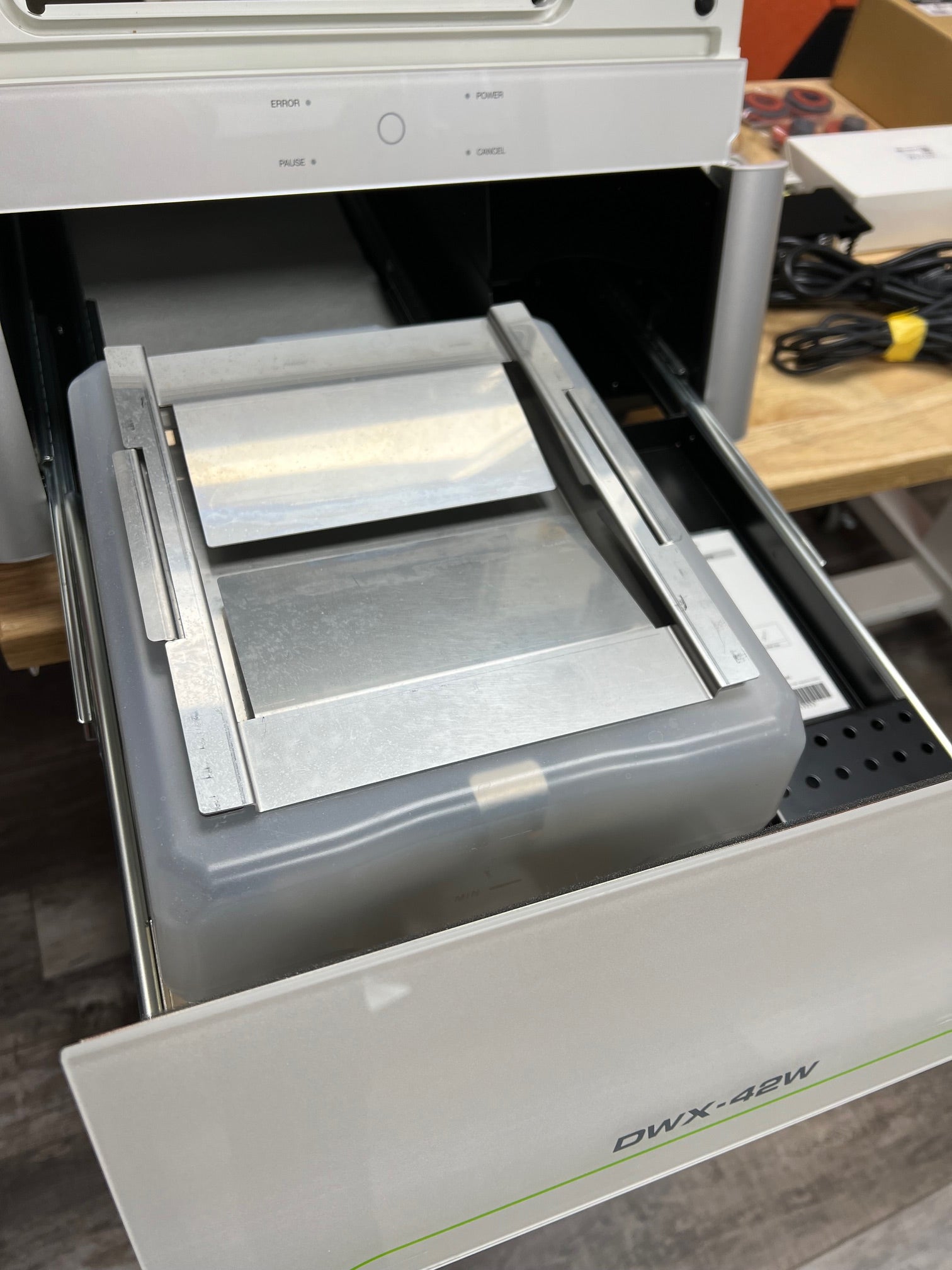

  • Coolant tank
  • Waste receptacle
  • Filters (2)
  • Regulator with stay and screws (2)
  • Maintenance kit, 6 mm air hose

Specification Chart
Specification Details
Millable Material Glass ceramics, Composite resin, PMMA
Loadable Workpiece Shape
  • Width: Maximum 40 mm
  • Depth: Maximum 20 mm
  • Height: Maximum 20 mm
Operating Speed 0.24 to 70.9 in./min. (6 to 1,800 mm/min.)

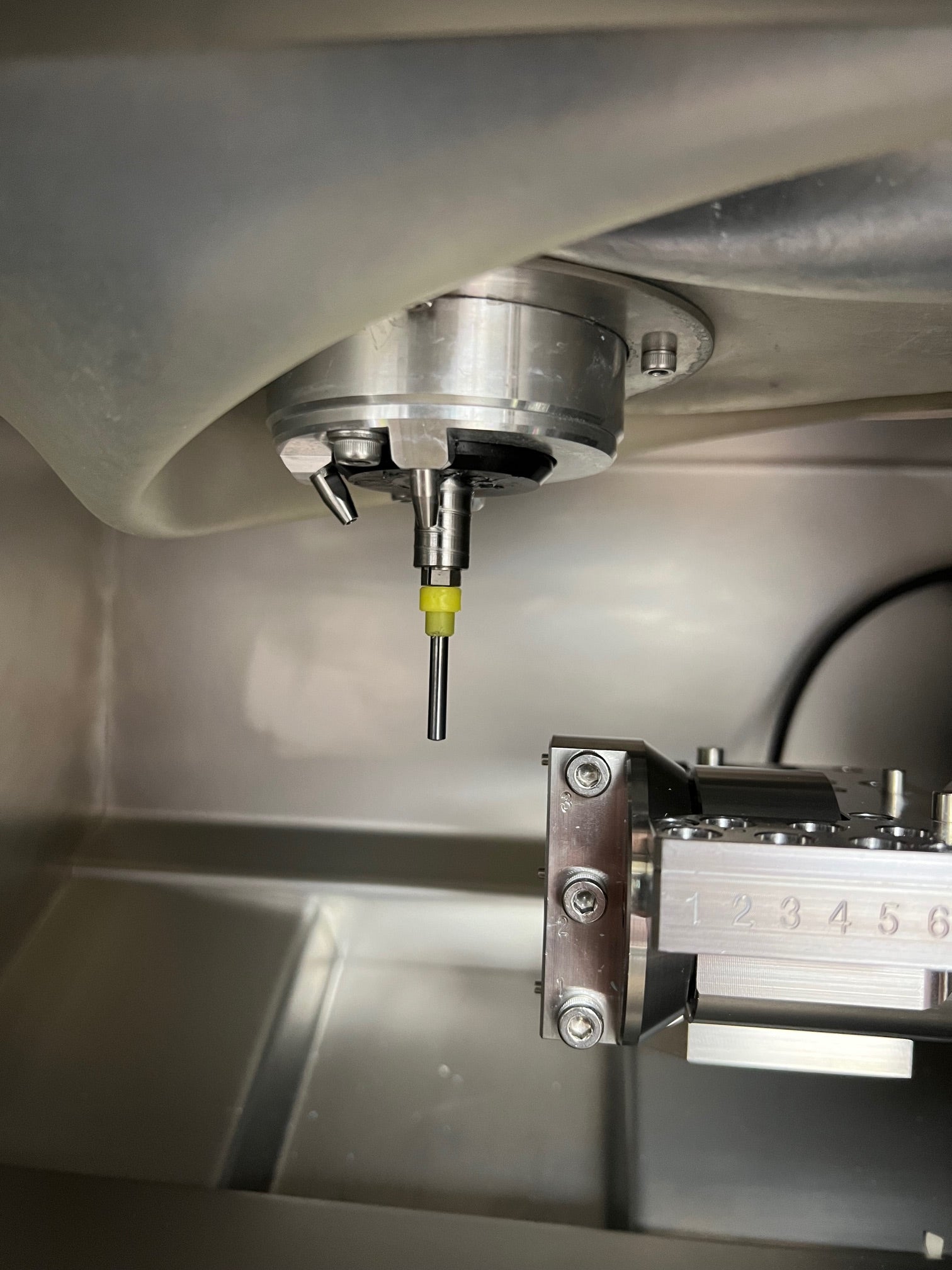

Spindle Speed 15,000 to 60,000 rpm

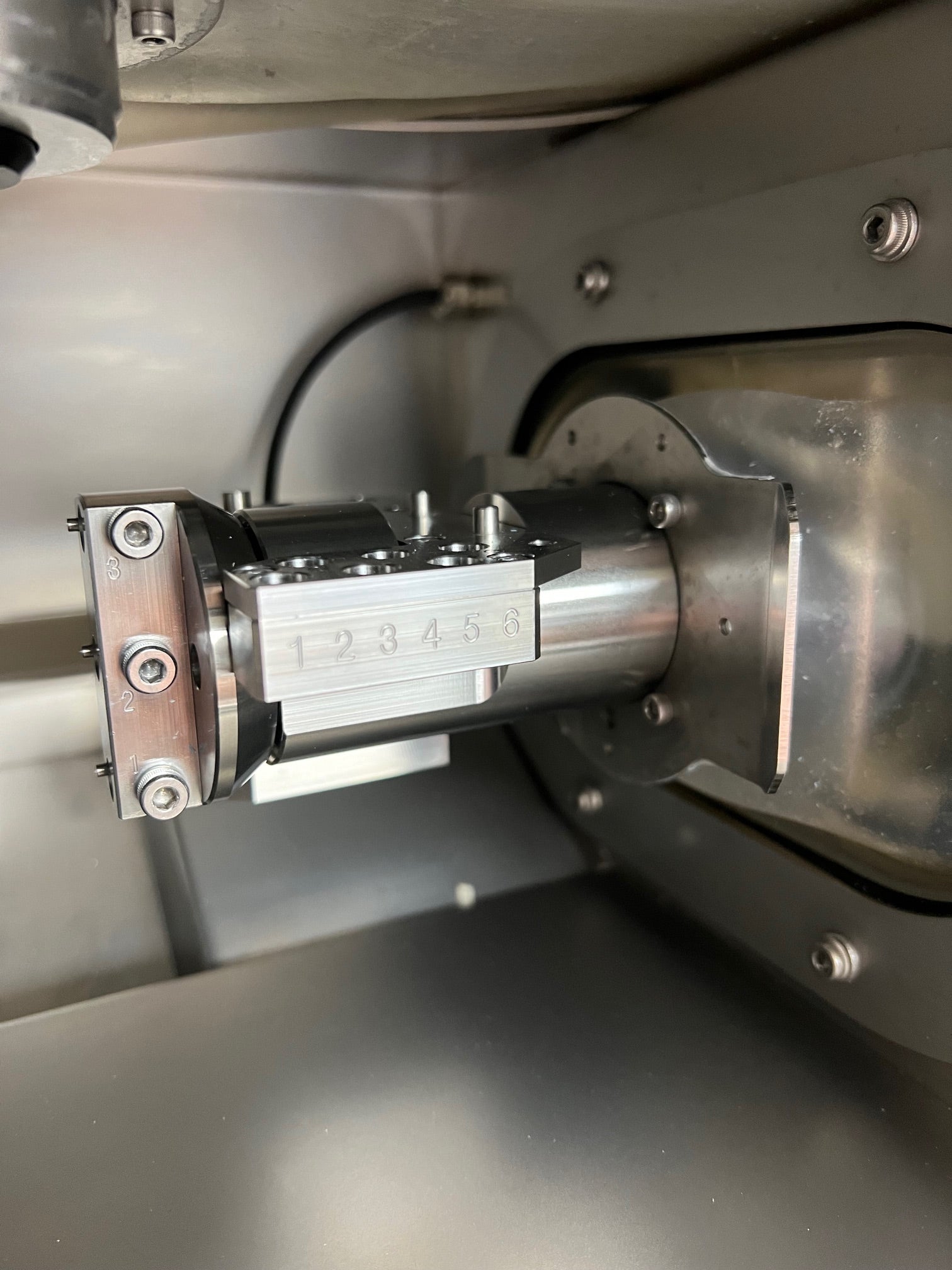

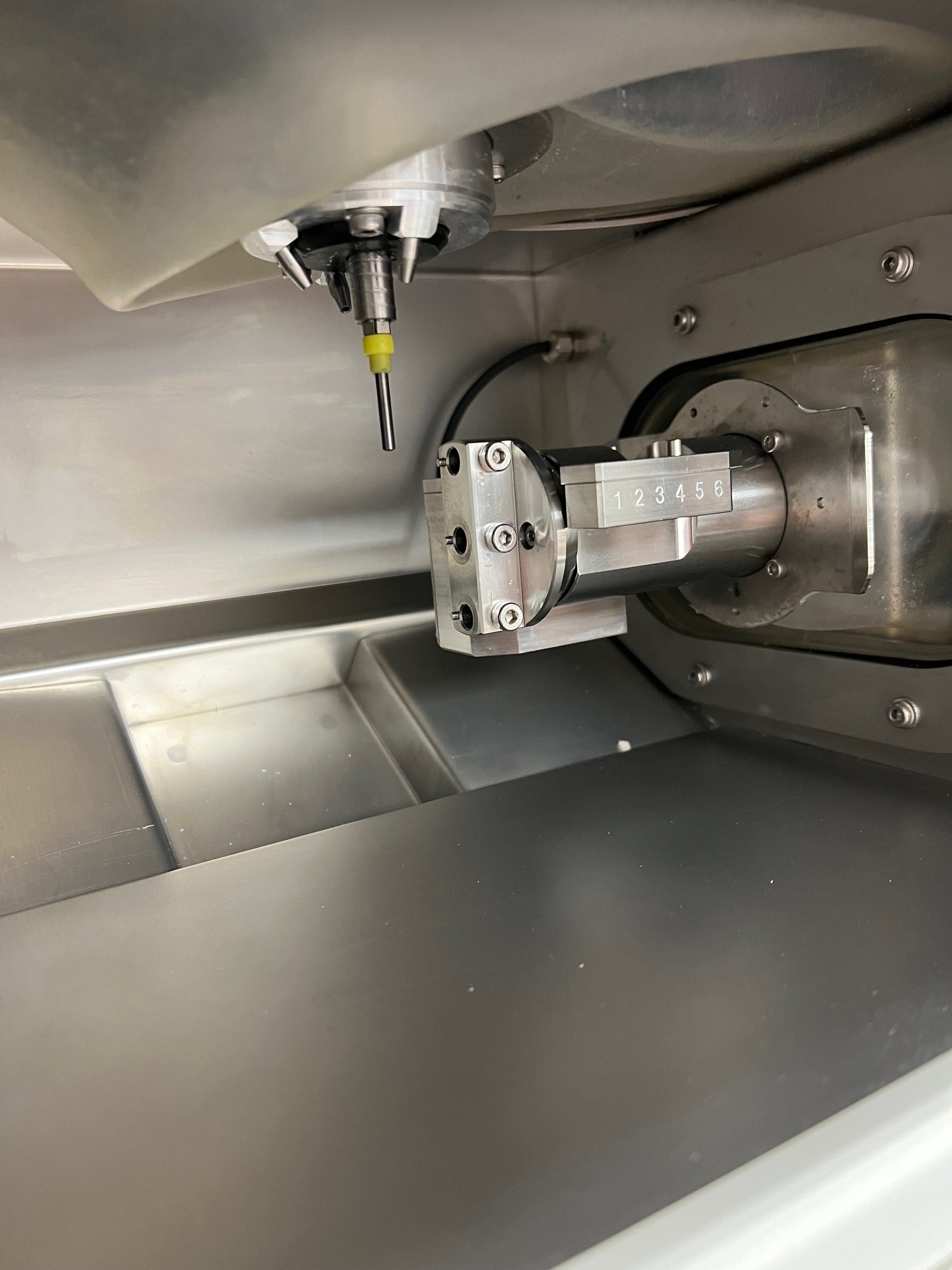

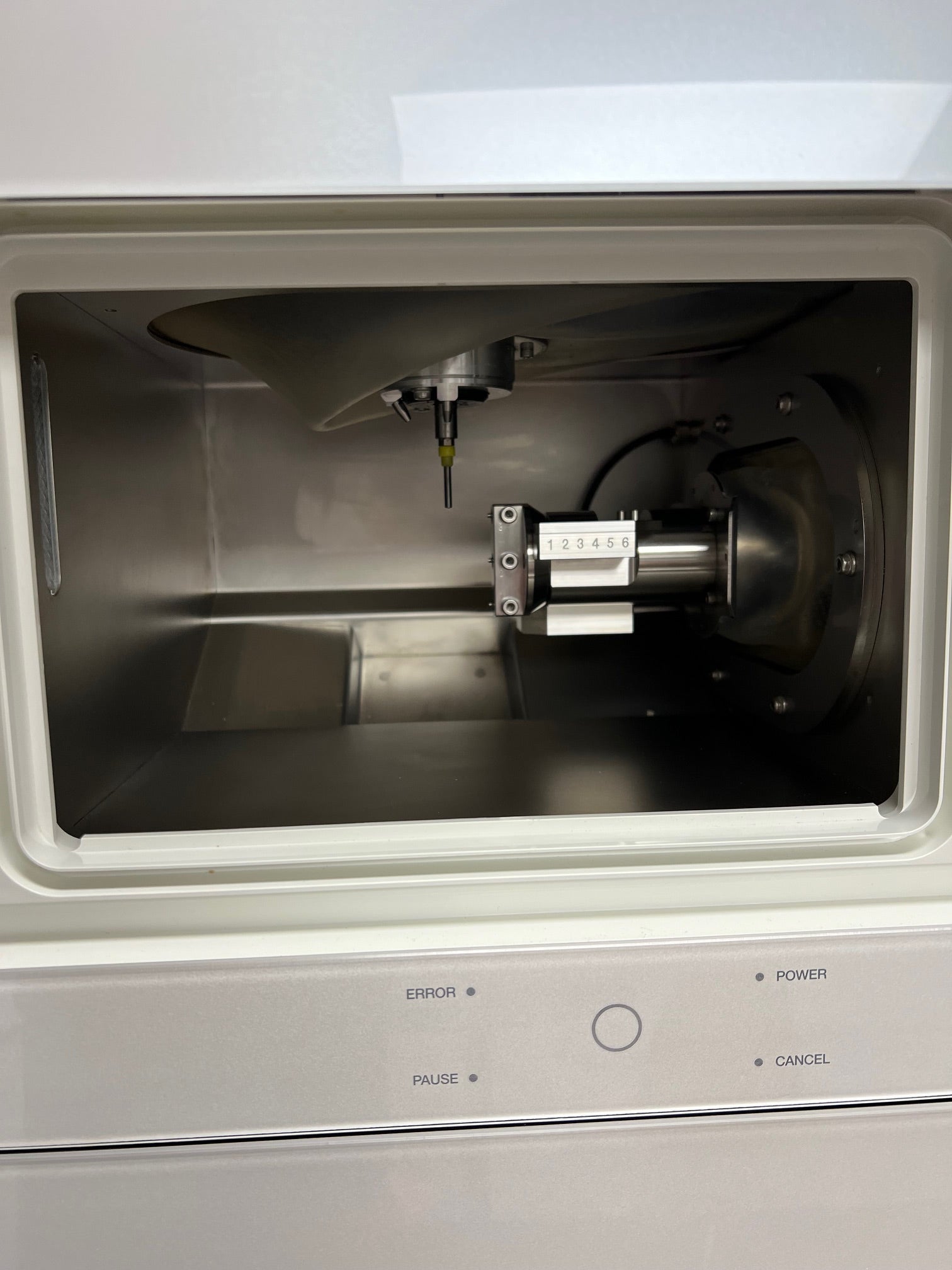

Rotary Axis Travel Angle (A axis) ±360°
Number of Burs Housed 6
Attachable Bur Shank diameter: 3 mm, dedicated milling bur
Compatible Compressed Air
  • Control Pressure: 0.3 MPA or more
  • Air Capacity: 39 L/min or more
Interface USB, Ethernet (10 BASE-T/100 BASE-TX automatic switching)
Control Command Set RML-1, NC code
Power Requirements AC 100 to 240 V ± 10%, 50/60 Hz (overvoltage category II, IEC 60664-1), 2.1 A
Power Consumption Approximately 190 W
Operating Noise (During operation) 70 dB(A) or less (when not cutting)
Operating Noise (During standby) 48 dB(A) or less
External Dimensions Width x Depth x Height: 19.0 x 22.0 x 23.6 in. (482 x 560 x 600 mm)
Weight 135 lbs. (61 kg)
Installation Environment
  • Indoor use, Altitude: Up to 6,562 ft. (2,000m)
  • Temperature: 41 to 82 °F (5 to 28°C)
  • Humidity: 35 to 80%RH (no condensation)
  • Ambient pollution degree: 2 (as specified by IEC 60664-1)
  • Short-term temporary overvoltage: 1,440 V
  • Long-term temporary overvoltage: 490 V
Included Items Power cord, USB cable, Roland DG Software Package CD, setup guide, drain hoses, dedicated milling burs (4), detection pin, dummy pin, rotary axis correction jig, ATC magazine correction jig and screw, hexagonal screwdriver, hexagonal wrench, measuring cup, mounting screws (4), milling bur removal jig, coolant tank, waste receptacle, filters (2), regulator with stay and screws (2), maintenance kit, daily maintenance card, 6 mm air hose, coolant additive, MillBox CAM software, Ethernet cable
